TECHNICAL data:

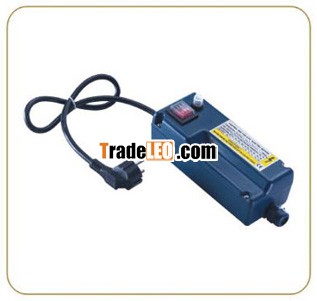

Single phase motor starting controller
Single phase capacitance operating motor is equipped with a external capacitance and a over-load protector in the starting controller which can automatically vreak down power supply (manual recover) when motor over-loading.

Suitable application rang
Type of motor:Single phase capacitance motor
Motor power:0.37-1.1kW
Voltage:220-240V-
Frequence:50Hz

Product functions
Protect against short circuit
Protect for over current

Operating method
Manual control

Installation environment index
Grade of protection:IP20
Environment temperature:-25-+55
Environment humidity: (20-90)%RH
