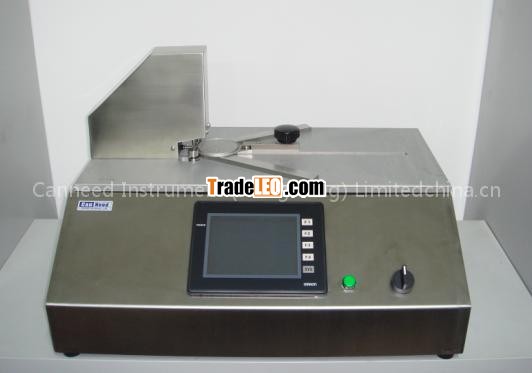

EMS-100 Multiple Lid Measurement Station is for testing the End outer diameter, End hook height and Countersink.
Place the ends on the testing platform, select the measure points, then press "start". The three pneumatic controlled sensors will start to measure the sample ends automatically at the same time. The sample ends will be rolled automatically to change the measure points. For every circle, the amount of measure points can be set from 1 to 50.
Measurement results can be exported by the RS232 data wire. Calibrate by the standard gauge and controlled by the touch-screen PLC system.

Technical data:

Power supply: 12V-230V/115V
Pneumatic supply: 6bar
Sample Ends Dia.: 50-230mm (Outer Dia.)
Output: RS232C
Accuracy: ±0.01 mm±1digit
Units: mm
Dimension: 530×460×260 mm
Weight: 20kg
