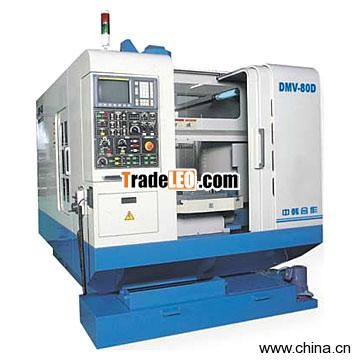

Model No.:DMV80D
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:Specifications:1) Dimensions of the surface of working table (L x W) 650 x 410mm, 25.59" x 16.14"2) Maximum carrying capacity of the crossing over working table (kg): 300 x 23) Distance between the end of the spindle and the surface of the working table: 700mm, 27.56"4) Spindle taper: BT405) Maximum speed of spindle (stepless): 100-10,500r/m in6) Power of master motor: 7.5/5.5kW7) Maximum length of travel of X axis: 570mm, 22.44"8) Maximum length of travel of Z axis: 580mm, 22.83"9) Maximum length of travel of Y axis: 420mm, 16.54"10) Feed speed in axis X (stepless): 10-10,000mm/min 11) Feed speed in axis Z (stepless): 5-5,000mm/min 12) Feed speed in axis Y (stepless): 10-10,000mm/min13) Fast motion speed in axis X: 40,000mm/min 14) Fast motion speed in axis Z: 20,000mm/min 15) Fast motion speed in axis Y: 40,000mm/min 16) Capability of tool changer (set): 16/2417) Maximum size of tools (diameter) (mm): 90 x 25018) Maximum weight of tools (kg): 819) Tool shifting time/tool changing time (s): 2 20) Dimensions of lathe tool (L x B x H): 1,960 x 2,987 x 2,650mm21) Net weight: 5,500kg
