Model:AP - FST - 0028

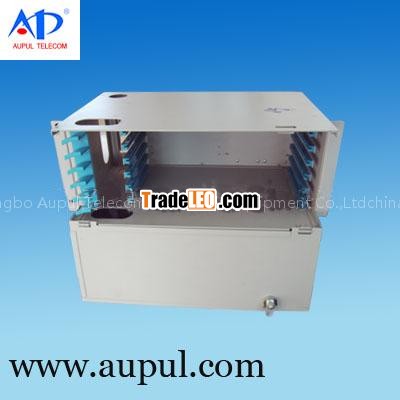

Rack - Mounted 72 port ODF
Features :
1) Optical distribution box is used at optical access network terminal, it acts as
the optical distribution and fusion
2) Box body is made of metal materials, it looks nice in shape and its operation
is convenient, anti-ageing and corrosion can be assured by the adoption of
SMC compound materials
3) The sealing performance meets the IP65-level requirements of GB4208
standard, thus, it is suitable for outdoor distribution
4) It is the combination of three functions: optical fusion, store and distribution
| AP - FST - 005 | 24 cores | 2 U | 49x30.5x8.9 cm | 4.6 kg |
| AP - FST - 006 | 36 cores | 2 U | 49x30.5x8.9 cm | 5.7 kg |
| AP - FST - 007 | 48 cores | 3 U | 49x30.5x13.35 cm | 7 kg |
| AP - FST - 008 | 72 cores | 4 U | 49x30.5x17.8 cm | 9 kg |
| AP - FST - 009 | 96 cores | 5 U | 49x30.5x22.25 cm | 11 kg |
5) Adaptor is installed with a certain angel, maintenance is easy, transmission
loss is low
6) It suits to common optical fiber cable, also to band optical fiber cable's fusion
7) Designed by full modulation, unit box has functions as optical fiber fusion,
tray storing and distribution, each fusion module can be singly taken out to
meet the demands for operating frame
