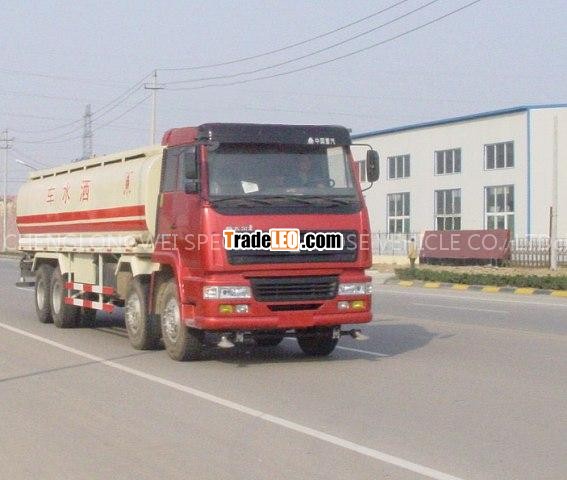

STEYR-4 Axils (WHEEL: 4F, 8R) multifunctional sprinkler adopted the qualified Sort leading imported and domestic chassis, applied in sorts road for sprinkling, spraying, temperature reduction and dust dunghill removing, moreover, available for roads conserving, Landscaping, fire fighting and drinking water transportation etc.
MAIN SPEC.:
ITEM MODEL&SPEC. MANURACTURER
SPECIAL VEHICLE STEYR-4 Axils (WHEEL: 4F, 8R) multifunctional sprinkler Hubei Cheng Longwei Special Purpose Vehicle Co., Ltd
CHASSIS ZZ1316M4669F  CNHTC(Ji Nan)
ENGINE WD615.92 CNHTC(SINOTRUK)

CHASSIS TECHNIQUE PARAMETERS:
ITEM MODEL&SPEC. ITEM MODEL&SPEC.
Drive System 8×4 Exhaustion Standard EU2 /CN2
Displacement (ml)/Power(kw) 9726/196  Tyre & Spare Tyre Spec 12.00R20,11.00R20
Gross /Rated / Kerb Mass(kg) 30990/15680/15180 No. of  Leaf  Springs 9/10/10,9/9/13
Dimension(L*W*H)(mm) 11900×2495×3128 F/R Suspension(mm) 1500/1210,1500/1700
Wheelbase/Axis No.(mm) 1800+4600+1350  Approach /Departure Angle(°) 25/25
F/R- Gearcase Front Axle: 5T Rear Axle: 10T transfixion , double rear axle F/R Truck(wheel base) (mm) 1940/1860
Driver Cab Cab over, high roof, double lie Clutch spring clutch, φ430MM
Steering-Gears Dual-spoke Steering ,  power-assisted steering Brake System Spring brake, Pneumatic breaks, Air Cut breaking.
Gearbox Nine Gear(Shaanxi gearbox)

VEHICLE MODIFCATION TECHNIQUE INFORMATION
ITEM MODEL&SPEC. ITEM MODEL&SPEC.
Cubage(m3) 26-30  Sprinkle Height(m) ≥15
Material Carbon Steel, Stainless Steel, Aluminum-alloy, AluminumPlastic Gun Reaching Range(m) ≥30
Figure Circumference, Ellipse, Round Max Vertical Suction ≥7
Dimension(L*W*H)(mm) :7100×2460×1620 Sprinkling/Spouting Pressure 250-450KPa
Pump( Optional) Sprinkling, Fire Engine Watering 0.2-2l/
Manufacturer Qualification Measure up (CN standard) Outlet Pressure 90m
Painting metallic Paint Water leading Time Consume <5min
Spare Parts & Accessories Maintenance Manual, Services Stations List, Introduction, Tools Flowing 60 m3/h
Introduction The vehicle modified on STEYR (SINOTRUK) chassis, advantaged with its high strength rigidity chassis, hoisting pump, flank design of water adding and pumping, easy operating, large aperture is convenient of affusion, provide for a safe and comfortable condition of controlling, withal durable in use.
Products feature The vehicle sprinkler system consisted of front irrigating (spouting), rear sprinkling, side showering works, elevated showering.  Provided for rear foot platform equipped with high power adjustable spouting gun that rain formed of straight ,down pouring , moderate ,drizzle, spraying and also would used for crop-dusting. Parameters as: vertical section>7 M, Sprinkling range >14 M, Shooting >28 M. While such vehicle could be used for high pressure flushing, fire fighting, motive pump station etc.
