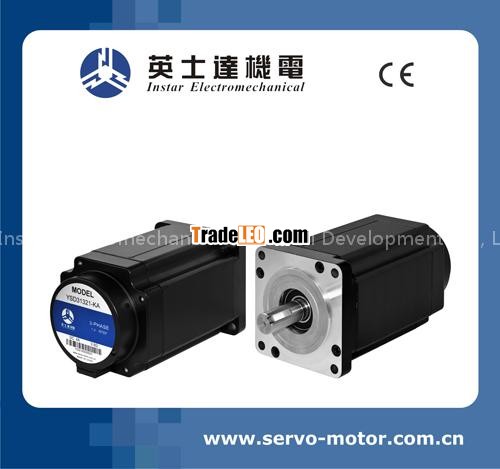

Model:YSD31325-3A
Functions:
1. CNC machine, ATM machine, LFP, Inkjet Printer, Medical equipment, Industrial Control,Robot etc.
2. Stepper motor dealers, distributors, wholesalers for resale.
3. With matched controller/driver.
Specification:
Please refer to our photo and chart.
Item | Technical Parameter |
Step Angle | 1.2° |
Step Angle Accuracy | ±5%(full step, no load) |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Temperature Rise | 80°C Max(rated current,2phase on) |
Ambient Temperature | -20°C~+50°C |
Insulation Resistance | 100M Ω Min 500VDC |
Dielectric Strength | 820V AC for one minute |
Shaft Radial Play | 0.02 Max(450g load) |
Shaft Axial Play | 0.08 Max(450g load) |
Max Radial force | 220N(20mm from the flange) |
Max Axial force | 60N |
Model | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | Wire Leads | Rotor Inertia | Weight | Length | |
Single Shaft | Double Shaft | A | Ω | mH | kg-cm |
| g-cm2 | kg | mm |
YSD31318-3A | YSD31318-3B | 4.0 | 3.2 | 22.1 | 200 | 4 | 26700 | 14.1 | 183 |
YSD31321-3A | YSD31321-3B | 4.0 | 0.8 | 17.6 | 280 | 4 | 33970 | 17.2 | 215 |
YSD31325-3A | YSD31325-3B | 4.0 | 1.1 | 23.1 | 350 | 4 | 41240 | 19.8 | 247 |
