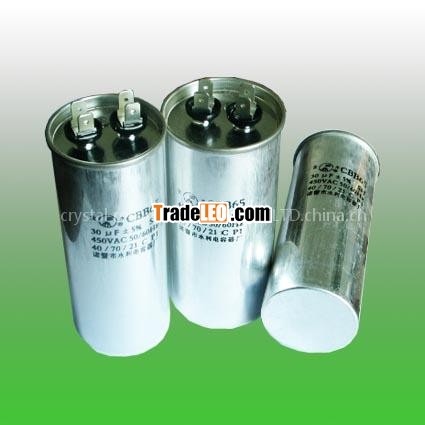

Material of Case: metal Case. Easy Mounting with Integral Stud (optional)
Capacitance Range: 3~100μF
Rated voltage: 110~500VAC
Temperature range: -40~85oC
Testing voltage: T-T 2Un 2s, T-C 2000VAC 60s
Insulation Resistance: T-T≥3000MΩ, μF, T-C≥1000MΩ
Dissipation Factor: Tanδ≤0.002
Capacitance Tolerance: J(±5%), K(±10%)Fulfilled at the request of customers.
Executing Standards IEC60252, UL810, EN60252, VDE0560-8, GB3667.1-2005

Note:
Exceptional specifications can be produced on consultation
Can be produced according to customer's needs.
