Feature:

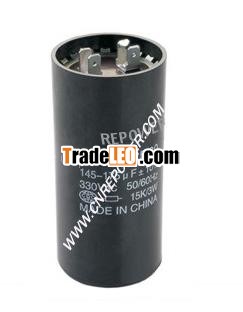

1)Aluminum electrolytic starting capacitor
2)Non inductive winding
3)Lower dissipation factor
4)Self-extinguishing bakelite case
5)High stability and reliability
6)Discharge resistance
Widely used for 50/60Hz Single Phase AC motors,pumps,air conditioning,refrigerations etc.
-Discharge resistance,end caps and brackets are available if required.

Technical Characteristics:
1)Rated Frequency:50/60Hz
2)Voltage Range:110-330Vac
3)Capacitance Range:21-1536uF
4)Capacitance Tolerance:±5% OR ±10%
5)Temperature Range:-40+65
6)Dissipation Factor(20,100Hz):≤0.10
7)Withstand voltage between terminals:1.2xUn for 2s No Breakdown
8)Withstand voltage between terminal and case:2000Vac for 10s No Breakdown
9)Execute Standard:IEC252,ANS/EIA463-A/B

Rated Voltage:

110VAC,115VAC,165VAC,220VAC,250VAC,275VAC,300VAC,330VAC

110V,115V,165V,220V,250V,275V,300V,330V

110VCA,115VCA,165VCA,220VCA,250VCA,275VCA,300VCA,330VCA

110VOLT,115VOLT,165VOLT,220VOLT,250VOLT,275VOLT,300VOLT,330VOLT

Rated Capacitance:

21-25uf,25-30uf,30-36uf,36-43uf,43-56uf,53-64uf,56-72uf,72-88uf,88-108uf,108-130uf,124-156uf,145-175uf,161-193uf,189-227uf,200-240uf,216-259uf,233-280uf,243-292uf,270-324uf,300-360uf,324-389uf,340-408uf,378-454uf,400-480uf,430-516uf,460-552uf,540-648uf,590-708uf,708-850uf,829-995uf,1000-1200uf,1175-1410uf

21-25mfd,25-30mfd,30-36mfd,36-43mfd,43-56mfd,53-64mfd,56-72mfd,72-88mfd,88-108mfd,108-130mfd,124-156mfd,145-175mfd,161-193mfd,189-227mfd,200-240mfd,216-259mfd,233-280mfd,243-292mfd,270-324mfd,300-360mfd,324-389mfd,340-408mfd,378-454mfd,400-480mfd,430-516mfd,460-552mfd,540-648mfd,590-708mfd,708-850mfd,829-995mfd,1000-1200mfd,1175-1410mfd
