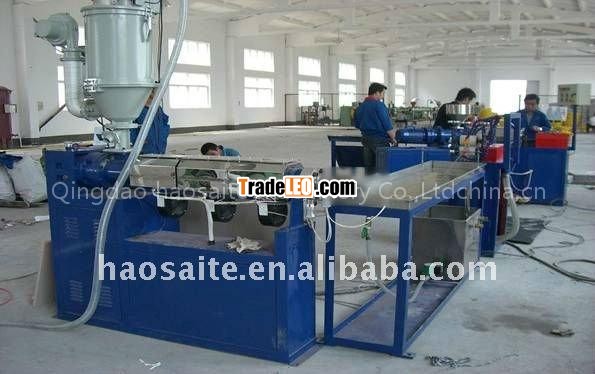

Flexible Siphon hose extrusion machine:

Flexible siphon hose extrusion line.......This hose used for toilet or shower room or washing room water drainage, with flexible wall , can overlap the corrugates of hose. we had making exporting to many countries.

Adopting two single screw extruders for processing PE/EVA adhesive material sprial hose.One extruder  makes “W” type  hose profile , and the other extruder use to extruder adhesive. There is a forming wheel (mould) form the hose profile and the adhesive into the hose, and the hose moving forward synchronously. In the following technical data, only the recommended standard data, the extruder type can be change according to buyer’s different requirements on extruding capacity.

PROCESS FLOWING CHART

45/30extruder     “W” hose profile die head and mould      haul off  unit     “W” hose profile cooling bath       air blower       roller supporter          calibration unit

“W”profile driving unit

                                Forming unit       cooling bath

 30/25 extruder
