Model:SJ-RD
Send Inquiry

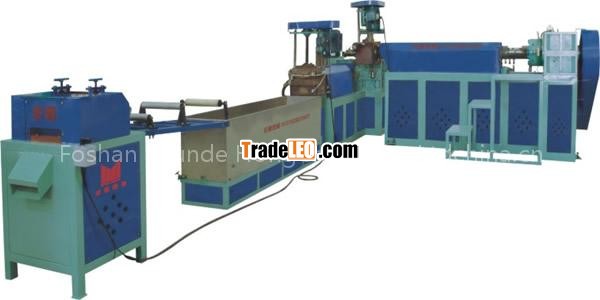

A).The application of SJ-RD Double Section Type Recyling Machine:
The recyling machine is applied to recycle of the used and waste material
B).The main parameters of Recyling Machine: 1.SJPE(Single)
| Model | SJPL120 | SJPL125 | SJPL140 | SJPL1540 |
| Screw diameter(mm) | 120 | 150 | 140 | 150 |
| Screw length(mm) | 2500 | 2600 | 3600 | 3850 |
| Screw barrel material | 38CrMoALAc(azote deal with) | 38CrMoALA(azote deal with) | 38CrMoALA(azote deal with) | |
| Mainframe drive power(kw) | 37 | 37 | 55 | 65 |
| Barrle heat up power(kw) | 28 | 28 | 55 | 65 |
| Model | SJJP120A/120 | SJJP120B/120 | SJJP125/120 | SJJP140/140 |
| Mother screw diameter(mm) | 120 | 120 | 125 | 140 |
| Screw diameter(mm) | 2300 | 2600 | 2500 | 3300 |
| Mainframe drive power(kw) | 30 | 37 | 37 | 55 |
| Baby screw diameter(mm) | 120 | 120 | 120 | 140 |
| Screw diameter(mm) | 1600 | 1600 | 1600 | 1800 |
| Mainframe drive power(kw) | 11 | 11 | 11 | 18.5 |
| Screw material | 38CrMoALA(azote deal with) | 38CrMoALA(azote deal with) | 38CrMoALA(azote deal with) | |
| Barrel material | 40Cr(azote deal with) | 40Cr(azote deal with) | 40Cr(azote deal with) | |
| Cut granule provide | 3KW(electromagnetism timing) | 3KW (electromagnetism timing) | 3KW (electromagnetism timing) | 3KW(electromagnetism timing) |
| Water tank material | Stainless steel water tank |
