Model:HDE18-HDE85
Send Inquiry

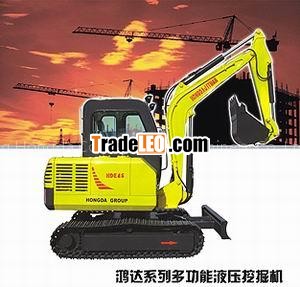

HonGDA series of multi-function small hydraulic excavator widely apply to such all kinds of construction sites as road,municipal works,pipeline nets,landscape works,water conservancy,etc.and are equipped with multiple working devices like breakers,etc. They can match with your various needs in special working situations and construction environments and ease all your worries by their excellent properties.
Technical parameters
| Item | Model | |||
| Model | HDE16 | HDE28 | HDE45 | HDE60 |
| A | 3800 | 4710 | 5481 | 6100 |
| B | 1020 | 1500 | 1515 | 2000 |
| C | 2260 | 2470 | 2593 | 2650 |
| E | 500 | 540 | 690 | 750 |
| G | 1518 | 2110 | 2600 | 2720 |
| F | 1045 | 1450 | 1900 | 2180 |
| H | 1020 | 1500 | 1950 | 2000 |
| J | 230 | 280 | 350 | 400 |
| K | 210 | 295 | 340 | 350 |
| S | 200 | 260 | 300 | 350 |
| Item | Model | |||
| Model | HDE16 | HDE28 | HDE45 | HDE60 |
| Weight | ||||
| Tare weight/Kg | 1660 | 2780 | 4380 | 5880 |
| Bucket | ||||
| Bucket volume m3 | 0.05 | 0.11 | 0.16 | 0.2 |
| Engine | ||||
| Rated power | 13.5kw @2200 | 25kw @2200 | 30kw @2200 | 40kw @2200 |
| Fuel tanker/L | 20 | 55 | 65 | 78 |
| Water tank/L | 3 | 4 | 4 | 4 |
| Hydraulic oil tank/L | 26 | 55 | 70 | 95 |
| Stepped reductor | 0.4×2 | 0.8×2 | 0.8×2 | 1×2 |
| Dimension | ||||
| Length(during delivery) | 3800 | 4710 | 5481 | 6100 |
| Width | 1020 | 1500 | 1950 | 2000 |
| Height | 2260 | 2470 | 2593 | 2650 |
| Min.turn radius | 1700 | 2050 | 2400 | 2600 |
| Min.ground clearance | 210 | 295 | 340 | 350 |
| Pushing bucket:mm | ||||
| Width×height | 1030×200 | 1520×260 | 1960×300 | 2020×350 |
| Working range up/down | 190/252 | 260/375 | 210/260 | 370/440 |
| Item | Model | |||
| Model | HDE16 | HDE28 | HDE45 | HDE60 |
| Hydraulic system | ||||
| Rated flow L/min | 2×20+10 | 2×38.6+21.6 | 2×40+11.4 | 2×55+34+9 |
| Working pressure Mpa | 18 | 24.5 | 24.5 | 24.5 |
| Performance data | ||||
| Rotation speed/rpm | 10.5 | 11 | 10 | 11 |
| Driving speed/km/h | 4.2/2.2 | 4.7/2.7 | 4.46/2.39 | 4/2.2 |
| Bucket digging ability/KN | 15 | 17.8 | 26 | 38.5 |
| Bucket rod digging ability/KN | 11.5 | 13.4 | 22 | 28.5 |
| Max.hauling capacity/KN | 9.1 | 22 | 41 | 50 |
| Rrade ability/° | 30°(58%) | |||
| C(Max.digging depth) | 2100 | 2820 | 3193 | 3820 |
| D(Max.digging depth in vertical) | 1560 | 1800 | 2338 | 3450 |
| F(Max.discharging height) | 2280 | 3220 | 5023 | 3950 |
| E(Max.digging height) | 3200 | 4280 | 3542 | 5980 |
| A(Max.digging radius) | 3530 | 4810 | 5574 | 6250 |
| B(Max.digging radius in ground) | 3400 | 4670 | 5448 | 6100 |
| J/K | 190/252 | 260/375 | 210/260 | 370/400 |
