crimping machine (SX-120) - Sell

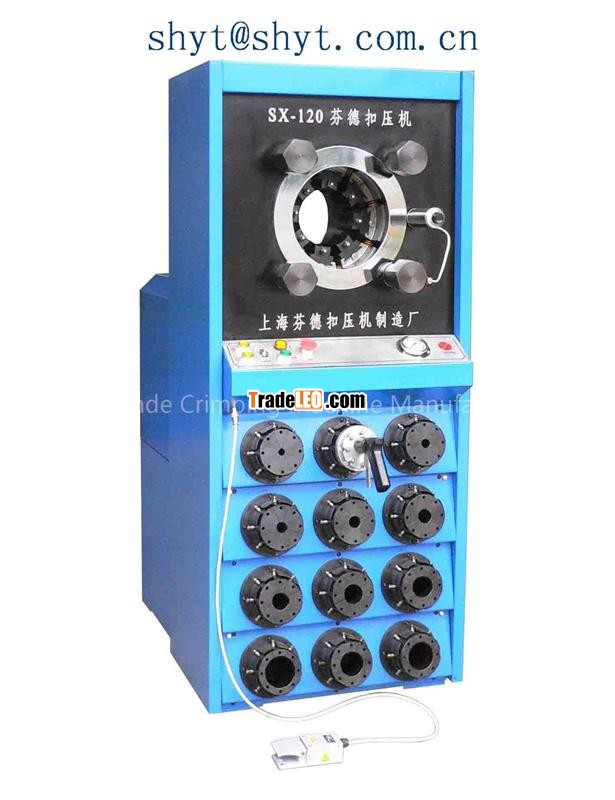

crimping machine (SX-120)

2016-10-29 01:28 Views:216

Price:Negotiable
Model:SX-120

Technical Specification:
　　Max hose ID:4"6-spiral Hose or 4" 4SP Drilling Hose
　　Theroetical Crimping Force(Ton):720
　　Max.Pressure(Mpa):26
　　Die Opening & Closing(mm):34
　　Max. Opening (mm):220
　　Motor Size(Kw):7.5
　　Operating Voltage:380V-3ph-50Hz
　　Full Crimping Circle (Seconds):14
　　Accuracy(mm):0.01
Standard dies:15,18,21,24,27,33,39,45,51,57,66,73
Optional dies:90,99,108,117,126,135
　　Un-even(mm):0.15 Max.
　　Weight(Kg):800
　　Dimensions(Length×Width×Height):850×550×1650(mm)

Die No.	Range (mm)	Length (mm)
15	15-18	75
18	18-21	75
21	21-24	75
24	24-27	75
27	27-33	75
33	33-39	75
39	39-45	75
45	45-51	75
51	51-57	95
57	57-63	95
66	66-73	95
73	73-80	105
Optional Die-set for SX-120(K)	90-135 (9mm per set)	100
