Model:CGF
Send Inquiry

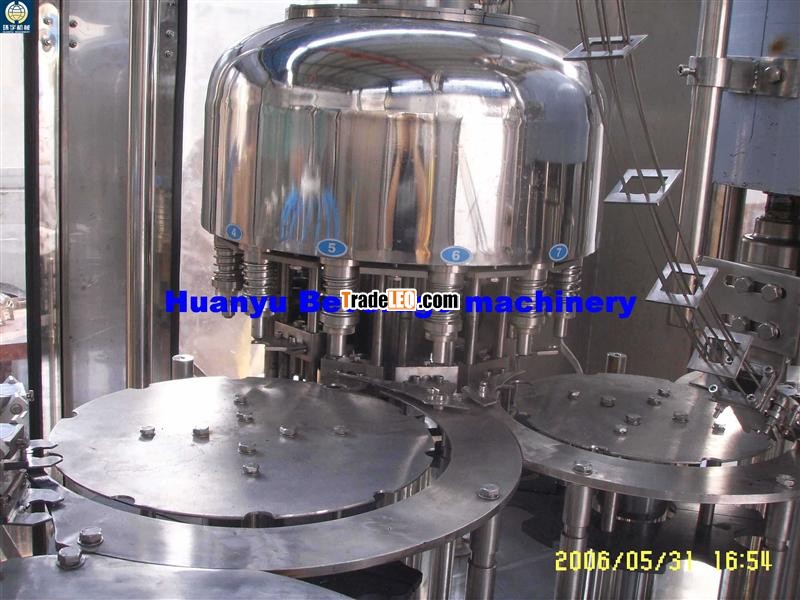

The bottle washer, filler and capper monobloc usage:
The water washer, filler and capper monobloc is mainly used for washing,
filling sealing non carbon dioxide drink such as mineral water,
pure water, non-gas wine drink and so on.
Characteristics: This water washer,filler and capper monobloc adopts
hanging type conveying-bottle structure to make changing
bottle model more convenient, faster and more east. The main
machine adopts advanced PLC control technology. The key
electric elements adopt international famous products. For the
further details, you can visit our websites.
| Model: | CGF16/12/6 | CGF16/16/6 | CGF18/18/6 | CGF24/24/8 | CGF32/32/10 |
| Production(500/m/bottle/h): | 3000 | 5000 | 8000 | 10000 | 12000-14000 |
| washing filling and capping heads | 16 12 6 | 16 16 6 | 18 18 6 | 24 24 8 | |
| Bottle size | Circular or square bottleBottle diameter(mm): Φ50-φ90 Bottle height(mm): 150-310 | ||||
| Compressed air pressure(MPa): | 0.3-0.7 | ||||
| Washing medium: | Aseptic water Washing | ||||
| waters pressure(MPa): | 0.25 | ||||
| Total output (KW): | 3.13 | 3.84 | 3.84 | 4.1 | 5.6 |
| Oerall dimensions(mm): | 2500x1500x2500 | 2500x1800x2500 | 3200x2200x2800 | 3400x2600x2800 | 3600x2800x3000 |
| Weight (kg): | 2500 | 3000 | 3500 | 4500 | 5000 |
Zhangjiagang Huanyu Beverage Machinery Co,.Ltd
The key manufactory of water, mineral water filling machine monobloc !
