Usage:

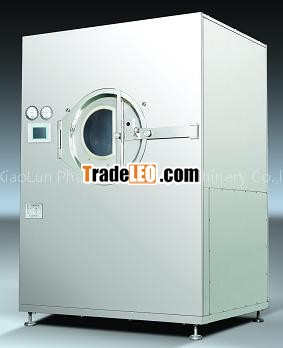

 BGW (C) Series high-efficiency poreless filmcoating machine is a high-efficiency, energy-saving, safe, clean, computer-controlled and mechatronis equipment which is used for coating sugar, organic film, water soluble film, slow and controlled release film on traditional Chinese and Western tablets and pills.

Features:
1.  It has all the features of BGB-C Series high-efficiency filmcoating machine.
2. The filmcoating drum is with a poreless structure. above 0.6mm tablet coating, versatile in use.
3. It has a specially structured air distributing system, and the air intake and exhaust pipes can be interchanged according to the needs.
4. Different materials are equipped with different air paddles. The paddles can be embedded into or taken off from the material according to technology needs.
5. It has a special purging water discharge unit.

Parameters:
Production capacity(Kg/run): 350

drum diameter:1580mm

caliber of drum:580mm
Speed range of drum(rpm): 2-11
Motor power of main machine(Kw): 4.0
Filtration accuracy of hot air(micron): 100000 grade
Motor power of hot air machine(Kw): 2.2
Motor power of exhaust machine(Kw): 7.5
Motor power of peristaltic pump(Kw): 0.18

Packing details:
Dimension of main machine(mm): 1900*1700*2290
Gross weight of main machine(kg): 1500
Dimension of hot air machine(mm): 1700*1200*2270
Gross weight of hot air machine(kg): 950
Dimension of exhaust machine(mm): 2700*1150*1550
Gross weight of exhaust machine(kg): 800
Dimension of agitating tank(mm): 1100*950*1500
Gross weight of agitating tank(kg): 160
Dimension of spare parts case(mm): 1300*1100*900
Gross weight of spare parts case(kg): 180
Dimension of electric cabinet(mm): 1000*500*2000
Gross weight of electric cabinet(kg): 130
