Model:PZ-3
Send Inquiry

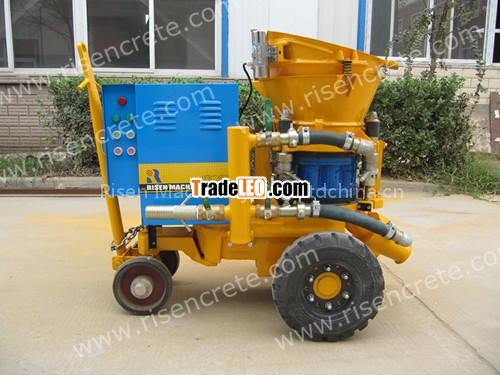

PZ-3 Shotcrete machine / Gunite / Concrete Spraying Machine is a small-sized shotcrete machine for t
PZ-3 Shotcrete machine / Gunite / Concrete Spraying Machine is a small-sized shotcrete machine for the dry spraying process. The output is 3m3 / hour.PZ-3 can be used as well for small jobs, such as joint
Filling, swimming pool, refractory application and Extensive slope consolidation work, etc.
Up to now, it has been exported to many countries such as Australia, Malaysia, Pakistan.
Technical data:
Type | PZ-3 | PZ-5 | PZ-9 |
Name | |||
output | 3 /h | 5.5 /h | 9 /h |
Max.conv.dist | 200 m | 200 m | 150 m |
Water cement ratio | < 0.4 | < 0.4 | < 0.35 |
Max.Aggregate.size | 10 mm | 15 mm | 20 mm |
Hose inner size | φ42/50 mm | φ50 mm | φ64 mm |
Operating air pressure | 0.2-0.6 MPa | 0.2-0.6 MPa | 0.2-0.6 MPa |
Air consumption | 5-6 /min | 7-8 /min | 9-10 /min |
Motor power | 3 kW(4hp) | 5.5 kW(7.5hp) | 7.5 kW(10hp) |
Voltages | 380V,440V,660V,1140V 50Hz/60Hz | ||
Basic chassis | Basic chassis is tyre .Skid and rail-wheel are optional | ||
