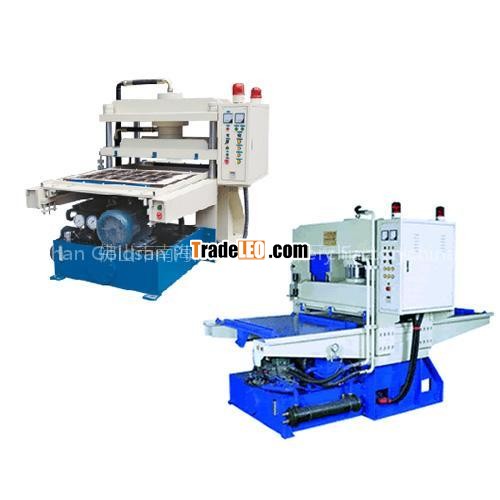

Doubles Worktables Hydraulic Cutting Off Machine

Hydraulic cutting off mchine is a popular cutting equipment throughout the world. It is mainly used for the one-off efficient cutting of the vacuum molding products. It also can be used fro punching the EPE further processed product, which can be used in a single or duplex manner. It features easy mould change, faster punching speed and wide application etc.

Model          GS/DBC-900     GS/DBC-1040

Working area  1200×800×150(L×W×H mm)1250×1040×150(L×W×H mm)

Cutting speed   6～10 sec    6～12 sec

Motor          10 HP×6P     20 HP×6P

Machine size  3200×1800×2000(L×W×Hmm) 4000×1800×2000(L×W×Hmm)

Machine weight    5000kg     7000kg
