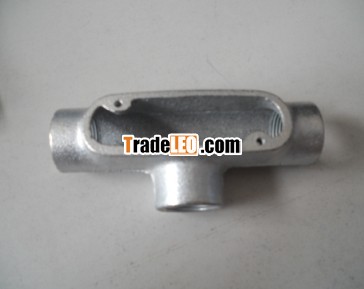

conduit bodies For linework.
| Products Specification | |||
| Item Name | conduit bodies | Brand | HE |
| Size | 1/2"-4" | Material | Malleable Iron |
| Finishing | (Black) Painting, Galvanizing, Elctro-plating | ||
| Type | Banded, Beaded , Plain | ||
| Standard | ISO5922/IS049/ISO7-1 , BS EN1562:1997, DIN 2950/1692/2999 | ||
| Mechanical Properties | Tensile Strength≥330MPA, Elongation rate≥8%, Hardness≤HB150 | ||
| Mechanical Properties | C:2.4~2.9 Si:1.2~1.7 Mn:0.3~0.55P:0.12 S:0.18 Cr:0.09 | ||
| Working pressure | Max 1.6MPA | Working temperature | Max 200°C |
| Producing Process | Pattern making - sand casting - heat treatment – galvanizing - threading - air pressure testing - packing | ||
| Usage | Fro pipeline convey water ,oil ,gas and so on | ||
| Testing | 100% Air pressure testing |
