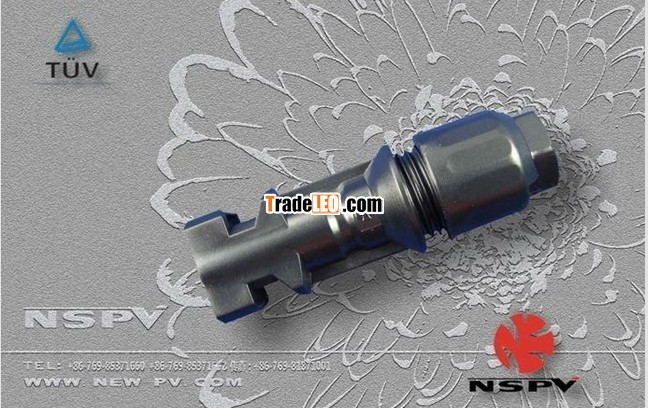

PV 3.0 Cable Female Connector(LOCK)

SPECIFICATION：

Insulation material...........................................PPE

Rated current...................................................30A

Rated voltage..................................................1000V(TUV)&600V(UL)

Test voltage.....................................................6kV(50Hz，1min)

Conract resistance...........................................≤5 mΩ

Contact material...............................................TI

 code.............................................................IP2X/IP67

Safty degree.....................................................II

Flame class........................................................UL94-V0

Material RTI......................................................110℃

Insertion force..................................................≤50N

Withdrawal force...............................................≥50N

Ambient temperature range..............................40℃ until +85℃

Suitable cable cross sections.............................2.5-6.0mm2(10AWG~14AWG)

Pin dimensions...................................................∮3
