Model:XLB-1600x8500*1

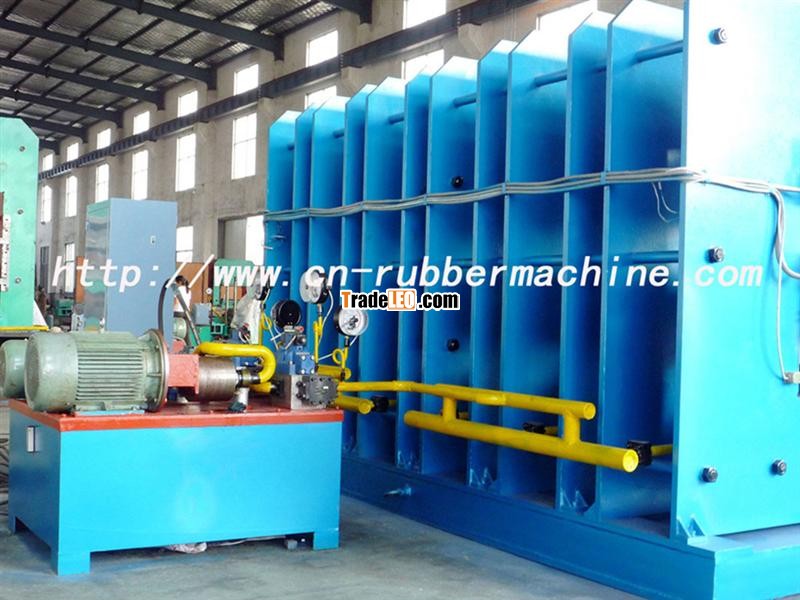

Rubber Belts Vulcanizing Machine
1. Rubber Belts Vulcanizing Machine has compact body and can vulcanize big-type conveyor belt with a higher level of automation.
2. Rubber Belts Vulcanizing Machine is applicable to vulcanize such conveyor belts as common rubber conveyor belts, nylon conveyor belts, steel cord conveyor belt and flame-retardant conveyor belt.
3. As the host machine of Rubber Belts Vulcanizing Machine use frame structure with micro fabrication and hot plate and piston all use superior-quality materials, so it is not apt to be corrosive wear and also has the following characteristics: Convenient maintenance, stably working pressure and convenient adjustment.
Technical Parameter:
Parameter | unit | XLB- 1800X 12000*2 | XLB- 1800X 10000*2 | XLB-1600x10000*2 | XLB- 1600X 10000*1 | XLB- 1600X 8500*1 | XLB- 1400X 10000*1 | XLB- 1400X 8000*2 | XLB- 1400X 5700*2 | XLB- 1100X 5700*2 | XLB- 1300X 4000*2 |
Hot-plate size | mm | 1800* 12000 | 1800* 1000 | 1600* 10000 | 1600* 10000 | 1600* 8500 | 1400* 10000 | 1400* 8000 | 1400* 5700 | 1100* 5700 | 1300* 4000 |
Total pressure | mn | 74.00 | 72.00 | 56.00 | 64.00 | 47.60 | 49.00 | 34.00 | 25.00 | 17.55 | 14.56 |
Hot-plate unit pressure | mpa | 3.4 | 4.0 | 3.5 | 4.0 | 3.5 | 3.5 | 3.1 | 3.13 | 2.8 | 2.8 |
Plunger diameter | mm | 500 | 500 | 450 | 500 | 500 | 450 | 400 | 360 | 500 | 500 |
Plunger No |
| 18 | 18 | 18 | 18 | 14 | 18 | 16 | 10 | 5 | 4 |
Max plunger stroke | mm | 400 | 300 | 400 | 300 | 300 | 300 | 400 | 400 | 520 | 250 |
Gripping strength | mn | 1.20 | 1.50 | 1.20 | 1.20 | 0.6 | 0.90 | 1.00 | 0.72 | 0.50 | 0.5 |
Tension force | mn | 1.101.2 | 1.10 | 1.0 | 0.5 | 0.80 | 0.90 | 0.60 | 0.40 | 0.4 |
|
Steam pressure | mpa | 0.63 | 0.6-0.8 | 0.63 | 0.6-0.8 | 0.63 | 0.63 | 0.63 | 0.63 | 0.63 | 0.63 |
Cooling water pressure | mpa | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
controlling method |
| PLC | PLC | PLC | PLC | PLC | PLC | PLC | PLC | PLC | PLC |
Dimension (L) | mm | 12000 | 1000 | 10000 | 10000 | 8500 | 10000 | 8000 | 5700 | 5700 | 4000 |
Dimension (W) | mm | 2900 | 2740 | 2660 | 2560 | 2980 | 2400 | 2400 | 2350 | 1800 | 2050 |
Dimension (H) | mm | 3930 | 3660 | 4120 | 3520 | 3325 | 3580 | 3880 | 4170 | 3305 | 2795 |
