Model:ZZ4257N3247N1B

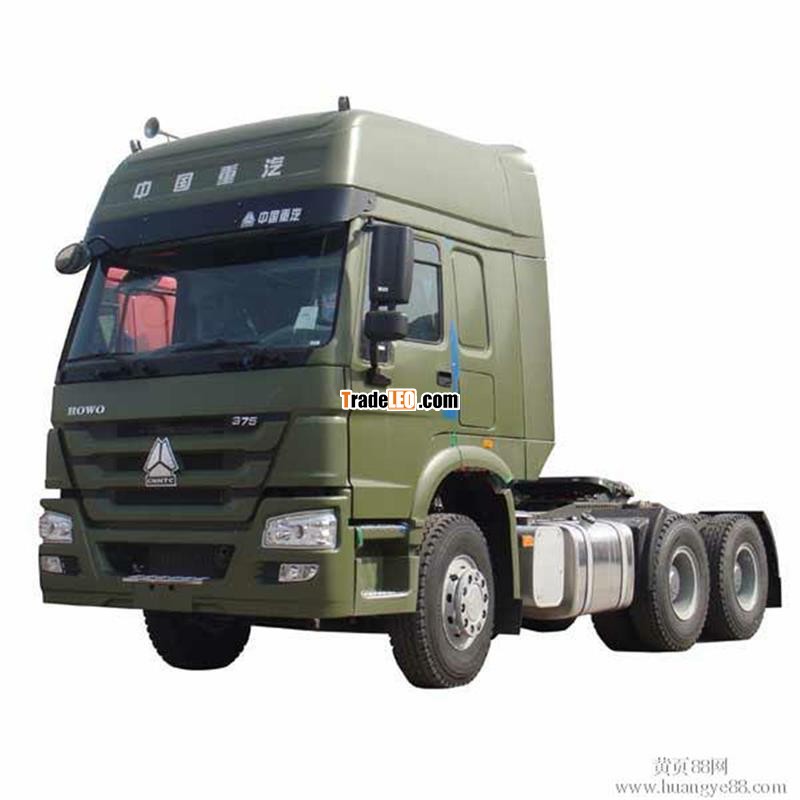

SINOTRUK HOWO 6*4 TRACTOR TRUCK
1. Tractor truck
2. Good quality
3. Short deliever time.
Product Description
HOWO Tractor Truck 6*4
HOWO series heavy duty truck built a new standard for domestic heavy duty truck, aiming at world advanced heavy duty design and manufacturing technology with incorporation of multi-advanced technologies. It is at domestic leading position in vehicle appearance, safety, comfort ability and ergonomics, and creates new driving experience on heavy duty truck; There are multi-types in this series which are selected by Ministry of Communication of the People's Republic of China as first batch recommended vehicle types. There are left hand and right hand driving types.
Product Highlight
- Luxury, great and movement appearance
- High safety design
- High efficient and comfortable ergonomic space
- Technical equipment leading in domestic market
SPECIFICATIONS | HOWO Tractor Truck 6*4 |
Engine | Maker: SINOTRUK |
Type:Diesel 4-stroke direct injection diesel engine,6-cylinder in-line with water cooling,turbo-charging & intercooling | |
Engine model:WD615.69,EURO-2 or EURO-3(EGR),WD615.96E emission standard | |
Displacement: 9.726L Bore: 126mm Stroke:130mm | |
Max.output: 336hp(247KW) at 2200rpm Max.torque: 1350Nm at 1100-1600rmp | |
Number of cylinder:6 Option:Thermostat with 71°C opening begin | |
Compression ratio:17.5:1 Specific fuel consumption:198g/kWh | |
Engine oil filling quantity:23L Cooling system filling quantity(long-term filling):40L | |
Thermostat with 80°C opening begin/ Rigid fan/ Visco fam/ Cold start with electro-heater | |
Clutch | Single-plate dry clutsh,mechanically operating with air assisted |
Transmission | model:HW18709,synchromesh,6 forward&1 reverse |
Ratio:12.68,8.46,6.26,4.64,3.38,2.5,1.85,1.37,1,11.36? Option:5S-150GP | |
Peropeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
Front Axle | Steering with double T-cross section beam |
Rear Axles | Pressed axle housing,single redution with hub redution and differential locks between wheels and axels |
Ratio:4.42 Option:single redution axles,radio:4.22 | |
Chassis | frame:U-profile parallel ladder with section of 300*80*8mm,all cold riveted cross member |
Front suspension:9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer | |
Rear suspension:12 leaf semi-elliptic leaf springs with bogie spring.stabilizer | |
Aluminum fuel tank:400L capacity with locking fuel cap,fitted to the off side of the chassis | |
Fifth wheel size:2 inch Option:305 inch fifth wheel | |
Steering | ZF power steering,model ZF8098,hydraulic steering with power assistance |
Ratio:22.2-26.2 | |
Braking System | Serive brake:dual circuit compressed air brake Parking brake(emergency brake):spring energy,compressed air operating on rear wheel Auxiiliary brake:engine exhaust brake Option:ABS |
Wheel & Types | Rims:8.5-20,10 hole-steel Tyres:12.00-20 tube Option:12.00R20, 11.00-20, 11.00R20 |
