Key Feature:

200W servo driver
1)Digital AC servo driver
2)low cost
3)DSP

Introduction:

 Digital AC 200W servo driver

*Position,speed and torques mode control

*differential pulse and diredtion or CW/CCW signals for position control

Oprical isolated I/O interface

*Current loop bandwidth(-3dB) 2KHz

*Velocity loop bandwidth 500Hz;

*Position loop bandwidth 200Hz

*incremental encoder feedback with differential signal interface;

*All round protection against various limit situation

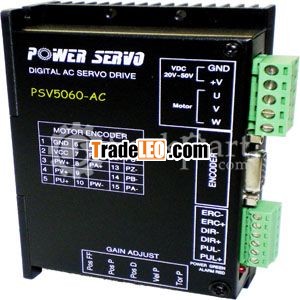

The and PSV5060-AC is an all-digital AC servo drive system, that comes with a state of the art digital signal processor(DSP). The integrated trim pot makes it easier to perform servo tuning,without the needs of a computer. With a high performance design and simplicity in usage,this results in an increase in an increase in engineering efficiency, capability and technology without an increase in cost.

The drive comes with the standard three feedback loop. These are mainly the position, Velocity and current loop,resulting in the ability to offer position, speed and torque mode of control,  respectively.
