Brand:bestq
Model:SGS

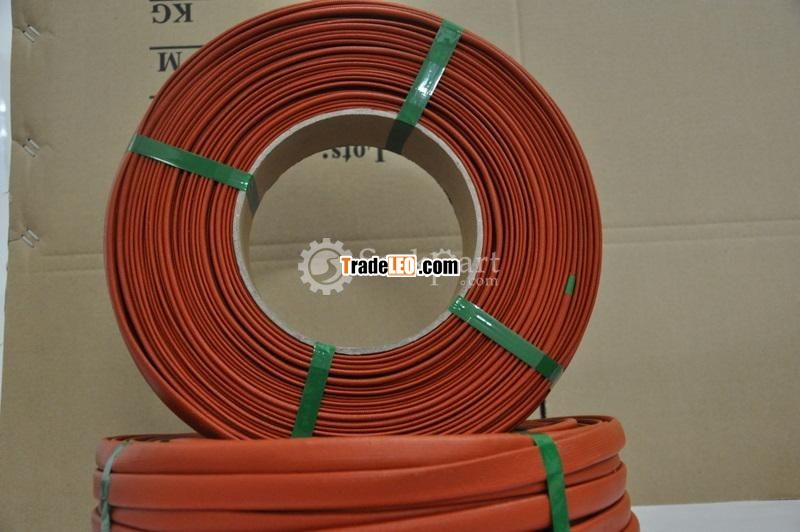

Silicone Coated Fiber Glass Sleeving
SGS(namely is 2753) is an insulating sleeving produced with a thermal process.The fiberglass is impregnated with silicone resin;it is available in four standard voltage:
1500 Volt
2500 Volt
4000 Volt
7000 Volt.
The thermal treatment and the spcial resin used for this item give this material a very good softness and elasticity, excellent high temperature resistance and good dielectric strength.
Description:
• Material: silicone rubber coating and fiberglass braided
• Withstand Voltage: 1.5KV to 10KV
• Operation temperature: -30° C~ 200oC
• Braid Clours: white/red/black/brown/yellow
• Testing Voltage: 2500V & 15000V
• Flam Retardant: UL 224 VW-1
• Good flexibility
• RoHS Compliant: Pass SGS Report
Dimension
| Inside Diameter | Tolerance on Diameter | Wall thickness SGS 1500V | Wall thickness SGS 2500V | Wall thickness SGS 4000V | Wall thickness SGS 7000V |
| 0.5 to 3.5 | +0.3-0 | 0.40±0.12 | 0.41±0.12 | 0.45±0.15 | 0.50±0.15 |
| 4.0 to 9.0 | 0.45±0.15 | 0.46±0.15 | 0.48±0.15 | 0.53±0.15 | |
| 10 to 12 | +0.5-0 | 0.50±0.20 | 0.52±0.20 | 0.58±0.20 | 0.58±0.20 |
| 14 to 16 | 0.68±0.20 | ||||
| 18 to 30 | +0.8-0 | 0.70±0.25 | 0.72±0.25 | 0.78±0.25 | 1.20±0.30 |
