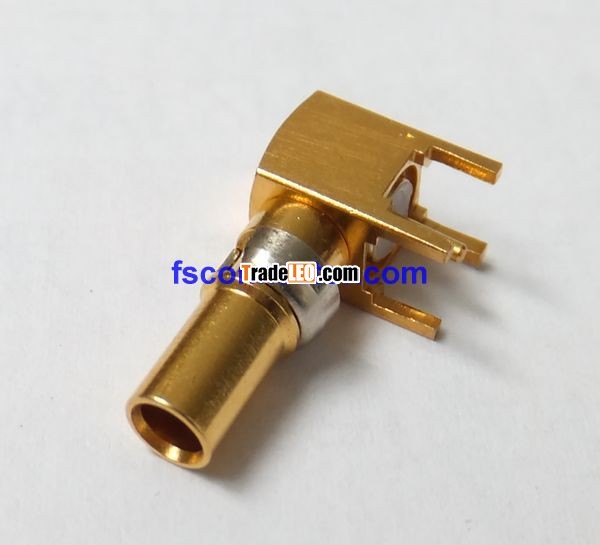

small sized, with impedance 50ohm, with screw,used for audio/video, telecommunications and computer/networking industries, base station, cable assembly, compent, datacom, router, wsitvhing equipment, telecom .and as such has a broad spectrum of cables and connectivity products spanning these markets. Our products include networking cables and accessories, power cables, audio/video cables and connectivity splitters, switches and converters, computer cables and connectivity products, wireless antenna cables and UPS replacement batteries to name a few.

MAJOR TECHNICAL CHARACTERISTICS

Temperature Range                     -55 to 155°C

Impedance                             50Ω

Frequency Range                       DC to 18GHz

Withstanding Voltage                    1000V r.m.s at sea level

Contact Resistance

                            Center contact≤3mΩ,

                      Outer Contact≥2mΩ

Insulation Resistance                     ≥5000mΩ

Center conductor retention force            ≥0.57n

Insertion Loss                           ≤0.20db/3GHz

Voltage Standing Wave Ratio     Straight≤1.22/3GHz, Right angle≤1.30/3GHz  ≥500cycles

MATRERIAL AND PLATING

Body: brass. Nickel plated

Pin Contact: brass, gold or silver plated

Socket Contact: beryllium-copper, gold or silver plated

Resilient Contact: tin bronze, gold or silver plated

Insulator: PTFE

Crimp Ferrule: copper alloy, nickel plated

O-ring Sealing: 6146 silicone rubber

APPLICABLE STANDARD

MIL-C-39012

CECC 22120

IEC 60169-8
