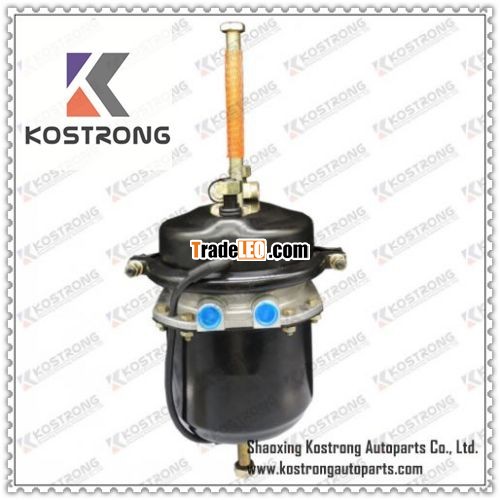

Product Name: Spring Brake Chamber T3024DP

Manufacturer: Kostrong Autoparts

Material: Steel, Aluminium

Stroke: 64

Push Rod Length: 245

Bolt Centre: 120.7

Bolt Thread: 2-M16×1.5

Port Thread: 2-M16×1.5

Brake Method: Piston+Diaphragm

We offer air brake chamber with with the following product specification:

1. Working Pressure: 800Kpa.

2. Maximum Working Pressure: 1Mpa.

3. Pushrod Stroke: 0~80mm.

4. Ambient Temperature: -40 °C ~+80 °C.

5. Life-time: Service Chamber: ≥1, 000, 000 Times.

6. Parking Chamber: ≥200,000 Times.

7. Leading Standard: SAE J146 -95.
