Specifications
Aile 241TPS Hose Swivel is designed for applications where easy nozzle and hose handing important for customer's convenience.

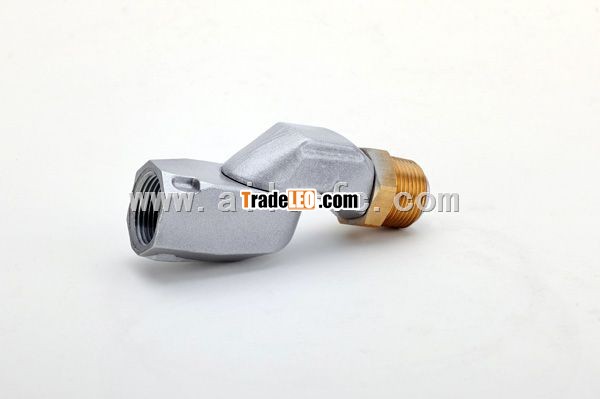

241TPS Hose Swivel



Materials:

Body:High Aluminum Zinc Alloy

lnner O-ring:Viton

Outer O-ring:Viton





Ordering Specifications:

Product#                       Size                         Weight

241TPS 801          3/4"F×3/4"M (NPT)           0.21KG

241TPS 802          3/4F×3/4"M(BSPT)          0.21KG





Features & Benefits:

1) Customers' Convenience-provides customers with the flexibility to fuel their vehicles from virtually any direction.

2) Multi-plane-provides a full 360 sperical rotation for free movement of nozzle.

3) High flow rate-is due to laminar flow design.

4) Dual seal-double o-ring seals at each swivel provide long life and low.

(-40 degree)temperature performance.

5) Compatible with fuel containing alcohol.

6) High strength step shoulder bearing diameters and impact absorbing stops.
