Model:JM-TG-019
Hebei Zhongxin Conveyor Machinery Co., Ltd. is a China-based professional manufacturer ofbelt conveyors and belt conveyor idlers. Established in 1980, our company was primarily engaged in producing and marketing carrying idlers, impact idlers, training idlers, head pulleys, tail pulleys, belt conveyors, and so on.

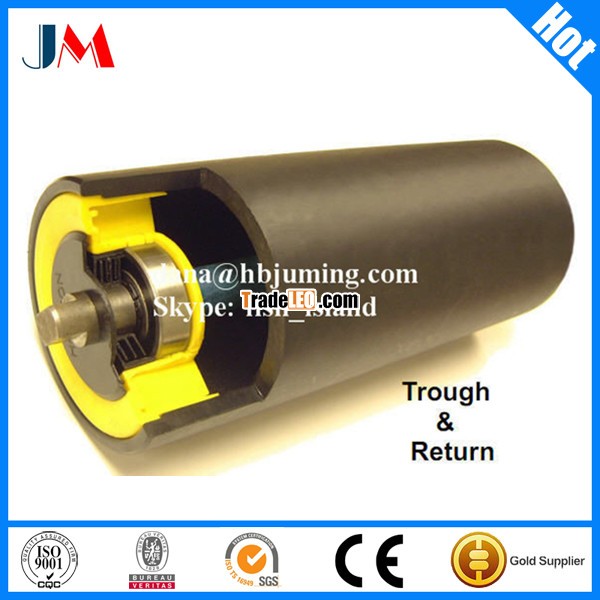

China TOP 10 Manufacturer Made Idler Roller for Belt Conveyor
1.Rational construction
2.Steady performance
3.Small resistance to rotation
4.Waterproof and dustproof
1) Diameter: 50mm-220mm.
2)Length: 190-3400mm.
3) Tube: Q235(GB) equal to S235JR(DIN)
4) Shaft: 45# steel(GB) equal to C45(DIN)
5) Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.
6)Grease:Lithium soap type grease,grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.
7) Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.
8) Welding: Mixed gas shielded arc welding end.
9)Painting: ordinary painting, hot galvanized painting, electric static spraying painting, baked painting
Summary of Idler Size:
| Standard Diameter | Length scope(mm) | Bearings Type(Min-Max) | Idler’s Shell Wall Thinkness | |
| mm | Inch | |||
| 63.5 | 21/2 | 150-3500 | 204 | 3.0mm-3.75mm |
| 76 | 3 | 150-3500 | 204 205 | 3.0mm-4.0mm |
| 89 | 31/3 | 150-3500 | 204 205 | 3.0mm-4.0mm |
| 102 | 4 | 150-3500 | 204 205 305 | 3.5mm-4.0mm |
| 108 | 41/4 | 150-3500 | 204 205 305 306 | 3.5mm-4.0mm |
| 114 | 41/2 | 150-3500 | 204 205 305 306 | 3.5mm-4.5mm |
| 127 | 5 | 150-3500 | 204 205 305 306 | 3.5mm-4.5mm |
| 133 | 51/4 | 150-3500 | 204 206 207 305 306 | 3.5mm-4.5mm |
| 140 | 51/2 | 150-3500 | 204 206 207 305 306 | 3.5mm-4.5mm |
| 152 | 6 | 150-3500 | 204 206 207 305 306 307 308 | 4.0mm-4.5mm |
| 159 | 61/4 | 150-3500 | 204 206 207 305 306 307 308 | 4.0mm-4.5mm |
| 165 | 61/2 | 150-3500 | 207 305 306 307 308 | 4.5mm-6.0mm |
| 177.8 | 7 | 150-3500 | 207 306 307 308 309 | 4.5mm-6.0mm |
| 190.7 | 71/2 | 150-3500 | 207 306 307 308 309 | 4.5mm-6.0mm |
| 194 | 75/8 | 150-3500 | 207 307 308 309 310 | 4.5mm-6.0mm |
| 219 | 85/8 | 150-3500 | 308 309 310 | 4.5mm-6.0mm |
OUR CUSTOMERS
Applications
We provide OEM service based on the design drawing or the sample. We can also provide any other customized belt conveyor idler rollers on the base of your drawings or original samples.
After sale service:
about shipment and sample quality tracking include life time,all your inquiry will be replied within 24 hours by our Customer service professionals.Any questions pleease feel free to contact with us.
