DEscriptION OF EPMC50H (electro permanent magnetic chuck) :

1         Comprising 50mm*50mm poles with a force of 380 kgf for each pole.

2         Each pair of N/S poles generates an autonomous and defined force which is not influenced by the operating conditions of the other adjacent poles.

3         It is possible to predetermine the force generated by counting the number of poles occupied by the clamped piece.

4         Optimum magnetic force is 4 alternate poles contact.

5         Operating with fixed and mobile pole extensions is better.

6         Equipped with longitudinal and transverse stop rails.

USE OF EPMC50H (electro permanent magnetic chuck):

7         Used for normal and heavy duty drilling, milling, and boring operations

8         Used for small, medium and large workpieces, including those with rough or uneven surfaces. Work pieces larger than the table surface are machinable. Min. thickness is 10mm.

FEATURES OF  EPMC50H (electro permanent magnetic chuck):

9         5 sides machining

10     Easy and quick set-up

11     Drastic reduction in downtime

12     Uniform holding force over the work piece:no distortion

13     Reduced consumption of tools

14     No electric power supply during clamping

15     Simplified CNC or FMS programming

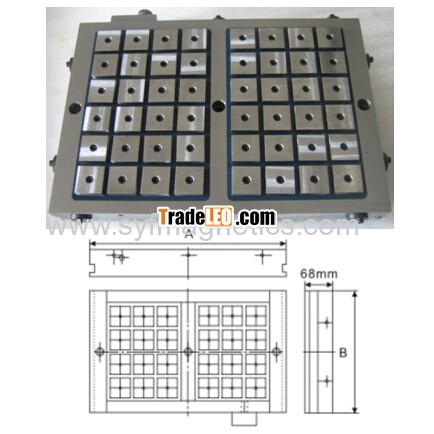

SIZE OF EPMC50H (electro permanent magnetic chuck)

All EPMC50H (electro permanent magnetic chucks) are 68mm tall, include control unit.
Machinable induction subplates are available for all chucks
