Model:E Clip
Rail Fasteners Rail Clips, Crane Rail Clips, Rail Clips Supplier

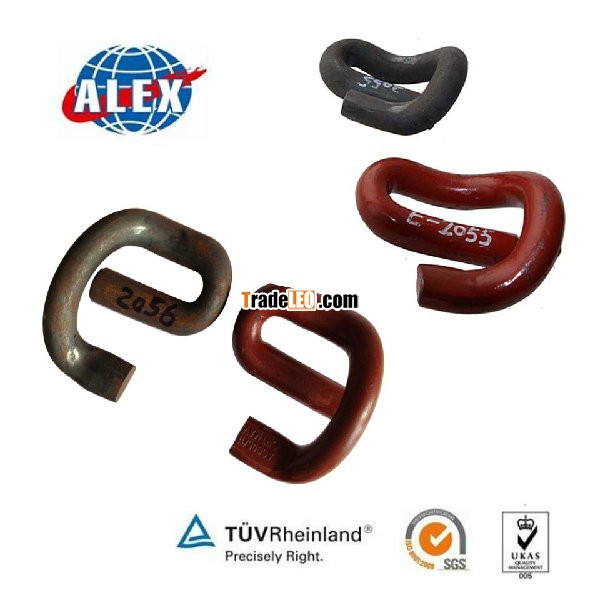

1> E Clip
Technical Parameter of The E Clip
| Diameter (mm) | Weight (Kg) | Toe Load (Kgf) |
| 12 | 0.18 | 200~400 |
| 14 | 0.30 | 400~600 |
| 16 | 0.44 | 500~700 |
| 18 | 0.59 | 800~1000 |
| 20 | 0.76 | 1100~1400 |
Material:60Si2MnA
Fatigue Property: When spring deflection is 9.1mm, fatigue life is up to 5million cycles without breaking.
Hardness: 42-47HRC.
MaterialReference: DIN 17221, BS970, GB/T 4357, GB/T 4358.
Flamping force25KN, Fatigue life 3 millions to 5 million
| Clip Toe Deflection | Toe LoadRange |
| 10.5mm~14.5mm | 1100Kgf~1400Kgf |
| 11mm~14mm | 800Kgf~1000Kgf |
| 14mm~15mm | 650Kgf~750Kgf |
Surface: Plainwith anti-rust oil, Bluing (Black Oxide), Painting, Zinc Plating or as perrequirement.
MOQ: 5000pcs
Packaging:15pcs or 50pcs per woven bag. Fumigation free Pallet. Clients can appoint theway.
We are aleading elastic rail clip manufacturer inChina. We can also make other railfastenings such as railway screw, plastic dowel, rail pad, railway insulator,rail fish bolt, railway base plate, rail anchor, railway shoulder, rail bolt,flat and spring washer, fastening system of E type/SKL type/KP type/Nabla type.
2> SKLClip
Technical Parameter of The E Clip
| Diameter | Type | Weight (Kg) |
| 13mm | SKL1 | 0.49 |
| 13mm | SKL3 | 0.53 |
| 13mm | SKL12 | 0.53 |
| 13mm | SKL14 | 0.505 |
Material:60Si2CrA
Loading Property: Under pressure 8-12KN, the displacement is between 9-12mm.
FatigueProperty: No less than 5 million times.
3> PRClip
Technical Parameter of The PR Clip
| Material | 60Si2MnA |
| Bar Diameter | 7/8" |
| Nominal Toe Load | 2,000 lbs |
| Nominal Rail Seat Clamping Force | 4,000 lbs |
| Working Deflection | 0.56" |
| Weight | 2.75 lbs |
4> NablaClip
| Material | 60Si2MnA |
| Loading Property | 2500DaN |
| Hardness | HRC51~55 |
After the firsttwo tests, variation of the height after releasing is only 0.45mm and afterthree more tests, there is only 0.1mm variation of height
5> VerticalSpecial Rail Clip
| Material | 60Si2MnA |
| Loading Property | 2500DaN |
| Hardness | HRC51~55 |
6> RailDeenik Clip
| Material | 60Si2MnA |
| Diameter | 16mm |
| Hardness | HRC51~55 |
