Model:CL-02
Send Inquiry

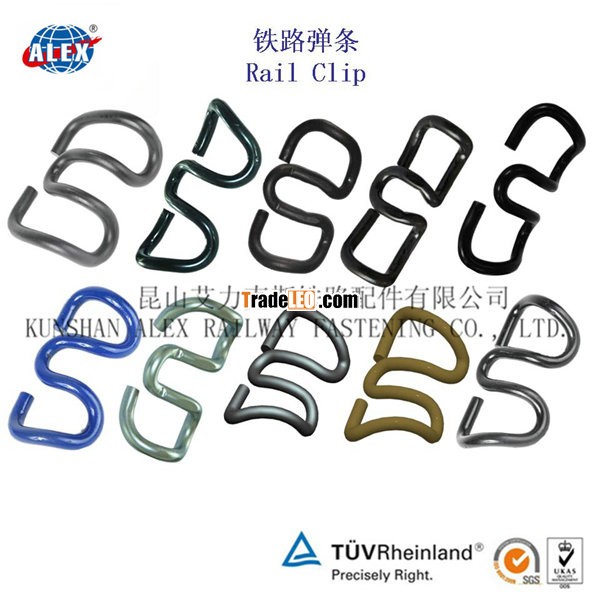

| Name | SKL12 Rail Clip | |||
| Type | Skl clip (skl1,skl3,skl12,skl14) | |||
| E clip (e1809, e2006,e2007,e2009,etc) | ||||
| Or the type by customers' drawings | ||||
| Material | 60Si2MnA | 60Si2CrA | 55Si2Mn | 38Si7 |
| Chemical composition(%) | C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 | C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 | C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 | C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
| Hardness | For e clip: 44-48HRC For skl clip: 42-47HRC | |||
| Fatigue life | for Dia.18 is 3 millions cycles without breaking for Dia.20 is 5 millions cycles without breaking | |||
| Surface | plain (oiled), Oxide black, color painting, HDG, Zinc Plating... | |||
| Standard refers | DIN17221, BS970, GB/T1222 | |||
