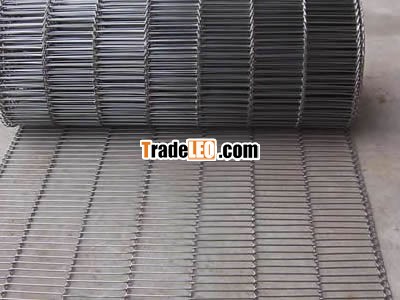

Heavy duty flat wire conveyor belt is made of AISI 304 stainless steel metal wires, available in several mesh specifications. 1" x 1" and 1/2" x 1" are the most commonly used. Other sizes are available upon request. These belts can be manufactured in widths ranging from 6-1/2" to 156", and to any desired length.

Belting Edges Treatment:
Heavy Duty Conveyor Belts are normally equipped with button-head welded edges, but can also be furnished with clinched edges.

Wire Materials Choices:
Heavy duty mesh specifications are made from three common materials: C-1008 low carbon galvanized steel, C-1040/C-1055 high carbon steel and type 304 stainless steel. Other materials are available upon request.

Uses: Where heavy loading capacity is needed for the conveyor belts: products sorting, assembly and packaging.
