Model:KSRC1112

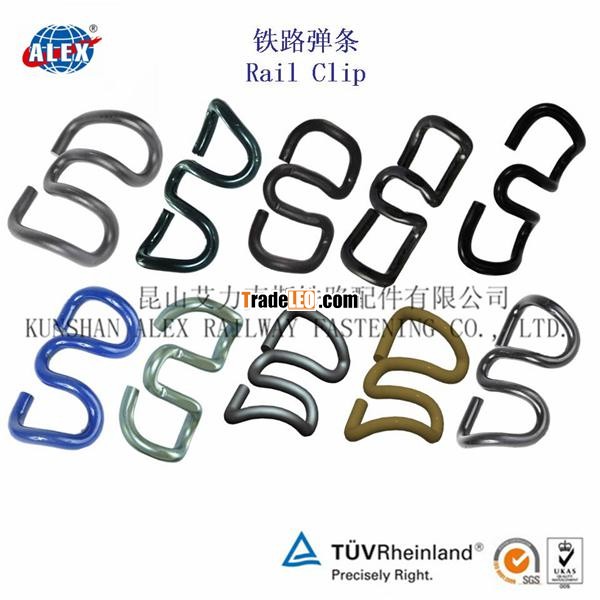

Rail Clip
Elasticrail clip is for rail fastening system. We produce and supply various elasticrail clip, spring blade and SKL tension clamp.
Technical Parameter ofThe SKL Clip
| Diameter (mm) | Weight (Kg) | Toe Load (Kgf) |
| 12 | 0.18 | 200~400 |
| 14 | 0.30 | 400~600 |
| 16 | 0.44 | 500~700 |
| 18 | 0.59 | 800~1000 |
| 20 | 0.76 | 1100~1400 |
Material: 60Si2CrA
Surface: Plain Oiled,Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating
Fatigue Property: When spring deflection is 9.1mm, fatigue life is up to 5million cycles without breaking.
Hardness: 42-47 HRC.
Material Reference: DIN17221, BS970, GB/T 4357, GB/T 4358.
Flamping force 25KN,Fatigue life 3 millions to 5 million
| Clip Toe Deflection | Toe LoadRange |
| 10.5mm~14.5mm | 1100Kgf~1400Kgf |
| 11mm~14mm | 800Kgf~1000Kgf |
| 14mm~15mm | 650Kgf~750Kgf |
Surface: Plain withanti-rust oil, Bluing (Black Oxide), Painting, Zinc Plating, HDG or as perrequirement.
MOQ: 5000pcs
Packaging: Less25KG per woven bag. Fumigation free Pallet. Clients can appoint the way.
Weare a leading elastic rail clip manufacturer in China. We can also make otherrail fastenings such as railway screw, plastic dowel, rail pad, railwayinsulator, rail fish bolt, railway base plate, rail anchor, railway shoulder,rail bolt, flat and spring washer, fastening system of E type/SKL type/KP type/Nabla type. Welcom to choose the rail Clip fromKunshan ALEX Railway Fastening Co., Ltd.
