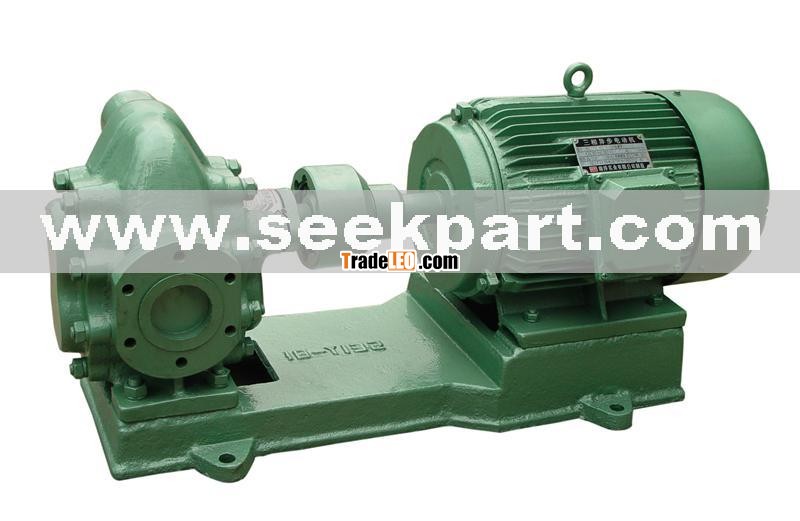

Brand:HG
Model:2CY
■ Model code
■ Application and features
This pump is suitable to carry various oils,such as the thick oil,diesel fuel and lubricator,animal and vegetable oil etc.alsoit’s available to transport the fluidities with low flashing point by equiped with copper,gear,such as gasolene and benzene,etc.Take care that the media temperature shouldn’t surpass 70℃ and the available temperature of oilpump against hitemper-ature shouldn’t more than 300℃.The pump has safety valve itself when the pump works under the high pressure.Shaft seal has skeleton oil seal.Mechanical seal and stuffing seal.Please it should be indicuted when placing order.
■ Mounting dimention drawing
| Model | Capacity m 3 /h | Pressure MPa | Vaccum m.H20 | Diameter mm | H | L | L1 | L2 | L3 | A | B | C | D | n-m | Distance K | Motor |
|
| KCB18.3 2CY1.1/14.5 | 1.1 | 1.45 | 5 | G3/4" | 109 | 583 | 405 | 72 | 250 | 205 | 250 | 79 | - | - | 200 | Y90L-4 | 1.5 |
| KCB33.3 2CY2/14.5 | 2 | 1.45 | 5 | G3/4" | 119 | 618 | 437 | 72 | 250 | 205 | 250 | 79 | - | - | 200 | Y100L 1 -4 | 2.2 |
| KCB55 2CY3.3/3.3 | 3.3 | 0.33 | 5 | G1" | 109 | 588 | 405 | 72 | 250 | 205 | 250 | 86 | - | - | 200 | Y90L-4 | 1.5 |
| KCB83.3 2CY5/3.3 | 5 | 0.33 | 5 | G1 1 /2" | 119 | 658 | 437 | 72 | 250 | 205 | 250 | 99 | - | - | 200 | Y100L 2 -4 | 2.2 |
| KCB133 2CY8/3.3 | 8 | 0.33 | 5 | G2" | 182 | 778 | 688 | 130 | 450 | 250 | 340 | 32 | - | - | 260 | Y132S-6 | 3 |
| 2CY8/6 | 8 | 0.6 | 5 | G2" | 182 | 818 | 688 | 130 | 450 | 250 | 340 | 32 | - | - | 260 | Y132M 1 -6 | 4 |
| 2CY8/10 | 8 | 1.0 | 5 | G2" | 182 | 818 | 688 | 130 | 450 | 250 | 340 | 32 | - | - | 260 | Y132M 2 -6 | 5.5 |
| 2CY12/1.3 | 12 | 0.13 | 5 | G2" | 172 | 703 | 576 | 130 | 370 | 250 | 305 | 32 | - | - | 260 | Y112M-4 | 4 |
| KCB200 2CY12/3.3 | 12 | 0.33 | 5 | G2" | 182 | 778 | 688 | 130 | 450 | 250 | 340 | 32 | - | - | 260 | Y123S-4 | 5.5 |
| 2CY12/6 | 12 | 0.6 | 5 | G2" | 182 | 778 | 688 | 130 | 450 | 250 | 340 | 32 | - | - | 260 | Y123S-4 | 5.5 |
| 2CY12/10 | 12 | 1.0 | 5 | G2" | 182 | 818 | 688 | 130 | 450 | 250 | 340 | 32 | - | - | 260 | Y132M-4 | 7.5 |
| KCB300 2CY18/3.6 | 18 | 0.36 | 5 | 70 | 187 | 898 | 723 | 120 | 480 | 280 | 340 | 45 | 123 | 6-M14 | 234 | Y132M 2 -6 | 5.5 |
| 2CY18/6 | 18 | 0.6 | 5 | 70 | 242 | 983 | 912 | 155 | 600 | 280 | 380 | 30 | 123 | 6-M14 | 234 | Y160M-6 | 7.5 |
| KCB483 2CY29/3.6 | 29 | 0.36 | 5 | 70 | 187 | 898 | 723 | 120 | 480 | 280 | 340 | 45 | 123 | 6-M14 | 234 | Y132M-4 | 7.5 |
| 2CY29/6 | 29 | 0.6 | 5 | 70 | 242 | 983 | 912 | 155 | 600 | 280 | 380 | 30 | 123 | 6-M148 | 234 | Y160M-4 | 11 |
| KCB633 2CY38/2.8 | 38 | 0.28 | 5 | 100 | 230 | 1094 | 912 | 155 | 600 | 280 | 380 | 60 | 158 | 8-M16 | 280 | Y160L-6 | 11 |
| 2CY38/6 | 38 | 0.6 | 5 | 100 | 286 | 1224 | 943 | 150 | 650 | 360 | 360 | 65 | 158 | 8-M16 | 280 | Y200L 2 -6 | 22 |
| KCB960 2CY60/3 | 60 | 0.3 | 5 | 100 | 230 | 1159 | 955 | 155 | 650 | 280 | 410 | 60 | 158 | 8-M16 | 280 | Y180L-4 | 22 |
| 2CY100/3 | 100 | 0.3 | 5 | 150 | 440 | 1586 | 1325 | 110 | 550×2 | 450 | 450 | -20 | 210 | 8-M16 | 400 | Y250M-8 | 30 |
| 2CY100/6 | 100 | 0.6 | 5 | 150 | 465 | 1856 | 1536 | 138 | 420×3 | 600 | 600 | 8 | 210 | 8-M16 | 400 | Y315S-8 | 55 |
| 2CY120/3 | 120 | 0.3 | 5 | 150 | 440 | 1586 | 1325 | 110 | 550×2 | 450 | 450 | -20 | 210 | 8-M16 | 400 | Y250M-8 | 30 |
| 2CY120/6 | 120 | 0.6 | 5 | 150 | 465 | 1856 | 1536 | 138 | 420×3 | 600 | 600 | 8 | 210 | 8-M16 | 400 | Y315S-8 | 55 |
| 2CY150/3 | 150 | 0.3 | 5 | 150 | 460 | 1696 | 1376 | 138 | 550×2 | 500 | 500 | 8 | 210 | 8-M16 | 400 | Y280S-8 | 37 |
| 2CY150/6 | 150 | 0.6 | 5 | 150 | 465 | 1946 | 1536 | 138 | 420×3 | 600 | 600 | 8 | 210 | 8-M16 | 400 | Y315M 1 -8 | 75 |
Note: 1. The value in the table is under 50℃, 30C. S. t.
2. KCB18.3-200、2CY1.1-12 have with waisf flange; KCB300-960、2CY18-150 havn＇t with flange, so user need do it.
