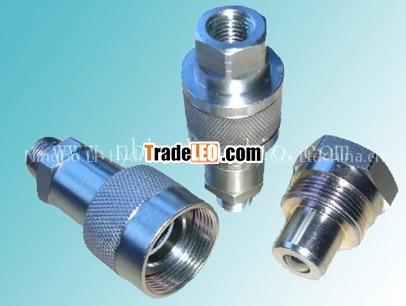

KSG-3000 Series: High Pressure Screw Together Coupling for Cylinder & Tool

The KSG-3000 Series is designed for high pressures encountered with hydraulic tools.

Material: Steel

Valve: Ball Type

Seal: Standard Nitrile (Buna-N)

Back-Up Ring: Teflon

Working Temperature: Standard Buna-N -25centidegree + 125centidegree

Interchange Standard

Parker 3000       Perfecting T        FasterPVVM

Safeway S30       Snap Tite 76       Dnp PVS

Enerpac C-604       Stucchi IVHP

Applications

KSG-3000 Series couplings with their threaded locking system and precision ball-type check valves are designed for extremely high pressure applications such as those found on portable hydraulic rams,jacks or clamping devoices.
