Applicable :

Solid Hardwood. MDF. PVC. Melamine .Plywood. Plastic. Foam .Acrylic Composites .Aluminum Tricell.

Features:

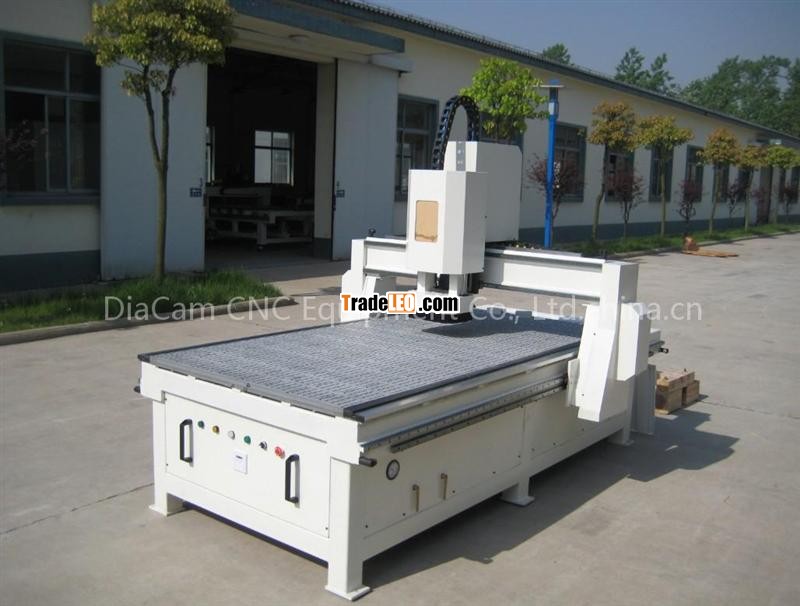

1.Gantry movement

2.Heavy grid steel welded structure

3.X ,Y axis rack and pinion drive, Z axis precision ball screw drive

4.24,000rpm high-performance Italian HSD spindle

5.PC-based CNC control system

6.High torque/high speed servo motor(brushless AC closed loop servo)

7.Three-axis rectangular linear guide way 25mm wide

8.Independently controllable suction table area for different work-piece

Technical performance:

Space-Overall    1850*3000*1900mm

Max working size  1400*2500*200mm

frame: Heavy grid Steel welded structure

Table Type : Vacuum suction table with 5.5kw

Spindle: Italy 5.5kw HSD

Control System: NC6B control software

Rail way: Taiwan Hiwin 25mm rectangle guide rail

Drive Type: Taiwan Delta Servo Motor with 750w

Drives: X.X axis rack and pinion, Z axis precision Ball screw

Tool holder diameter:3.175-18mm

Speed:24000rpm

Travel speed:40000mm/min

Cutting speed:20000mm/min

Voltage:3 Phase 380V 60HZ

Weight :1500kg
