Double Layer Roll Forming Machine,

Double Sheet Roll Forming Machine.

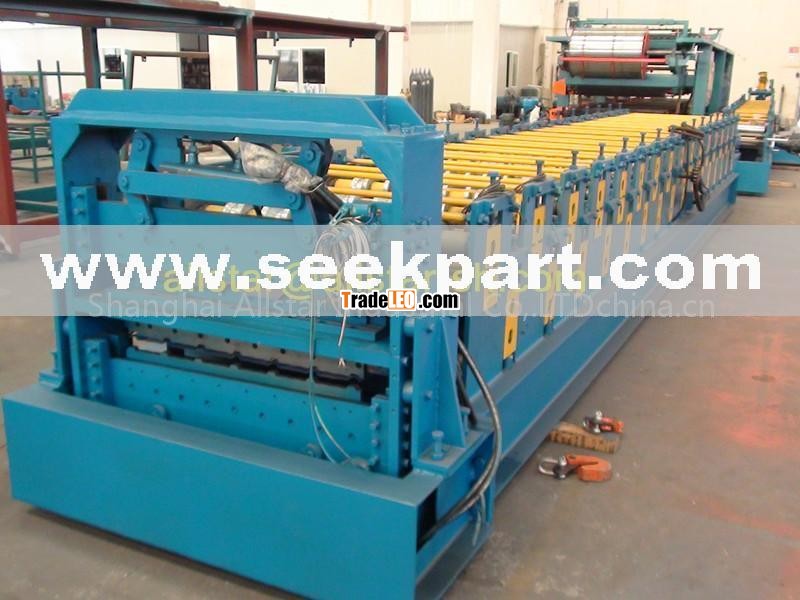

Double Layer Roll Forming Machine for Roof and Wall

Allstar Machinery: Double Deck Forming Machine, Double sheet Forming Machine, Double Layer Forming Machine.

--Technical Data

1. Decoiler: Hydraulic Decoiler

2. Weight Capacity of Decoiler: 10 Ton

3. Main Motor Power: 7.5 KW

4. Hydraulic Motor Power: 2.2 KW

5. Roll Stand: Upper 18, lower 18

6. Raw Material Width: 1000mm

7. Thickness of Raw Material: 0.3-0.8mm

8. Necessary Covered Width: 686mm, 762mm

9. Machine frame stand: Welded structural steel

10.Thickness of Fame Steel: 16mm

11.Type of Forming Machine: Single station with chain transmission

12.Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.

13.Transporting Type: Chain Transmission

14.Material of Chain: High Grade 45#, Heated and quenched HRC 45-50

15.Main Axis Material: High grade 45#

16.Axis Diameter: 70mm

17.Working Speed: 15-20m/min

18.Voltage:380V, 3Phase 50 HZ

19.Material of Blade: Cr 12

20.Heat Treatment of Cutting Blade: HRC 50-60

21.Type of Cutting: Hydraulic cutting

22.Electrical Control: PLC Frequency Control System with touch screen

--Working Flowing

Hydraulic Decoiler---Fedding Guide---Roll Forming---Cut to length---Run out table

--Equipment

Hydraulic Decoiler, Feeding guide, Main roll forming machine, Hydraulic cutting device, Hydraulic Station, PLC computer control, Output table.
