UL file number E350413  E350410

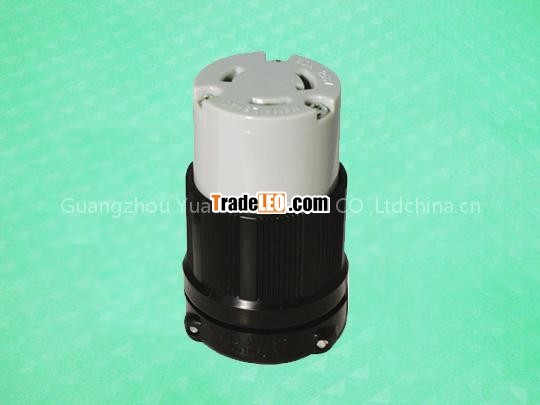

L6-30R UL Approve Nema Connector

NEMAL6-30R
30A 250V
Safety Standard UL cULs

Housing Material:Gray Original Nylon

Cord Clamp Material:Black Nylon

Blade Material:Brass

Terminal Clamp Material:.08"(2)steel-nickel plated

Terminal Screw MaterialL:#10-32 Brass(white finish on neutral screw when use)Multi Device

Ground Screw Material:#10-32 Brass(green finish)Multi-device

Cord Clamp Screw Material:Steel,zinc plated Multi-drive

Body Holding Screw Material:Steel,zinc plated Multi-drive

Ratings:Molded In or Stamped On

Catalog NO:Permanently ink marked on product

Dielectric Voltage Withstand:2,000V minimum

Current Interrupting:Cerfied for rurrent interrupt at full rate current

Temperature Ris:Max rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.

Cord Accommodation:Round portable service cords fo diameters commensurate with the device rating as defined in UL standard 62,CSA C22.2 NO.49

Terminal Accommodation:30A#10AWG

Terminal Identification:Terminals identified in accordance with UL498(X,Y,Z,White,Green)

Operating Temperatures:Maximum Continuous 75C Minimum-40C(w/o impact)

Moisture Resistance IP20
