Brand:DINGWEI

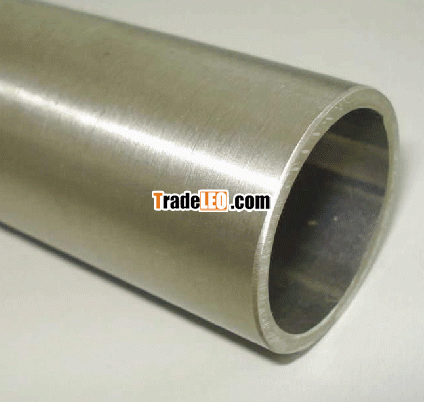

St 52 hydraullic cylinder tube
Features:
1.Wide range of size
2.suitable for bending
3.Good mechanical properties
4.Raw material from Baosteel
5.Mill test certificate provided
6.ISO/TS16949 certificate
7.Accept customers' special requirements
Our tubes for hydraulic cylinders are characterized by tight dimensional tolerances, controlled surface quality, high steel cleanliness and guaranteed eccentricity.
They are manufactured in accordance with the most important international standards and norms: EN 10305-1, DIN 2391-2, etc. for cold-drawn tubes
Name of commodity | St 52 hydraullic cylinder tube |
MTC | Mill Test Certificate provided |
Length | 3-6m random or fixed as per your request |
Specification | OD : 4-114mm WT: 0.5 ~ 25MM |
Applied standards | ASTM A53, A106, A179, A210, DIN2391,DIN17175, EN10305, etc |
Grade | St35, St35.8, St37, St37.4, St45, St52 etc. |
Delivery terms | BK,BKW,BKS,GBK,NBK or +C,+LC,+SR,+A,+N. |
Marking | Standard, Grade, Size ,Heat No. or according to your special requirements |
Zinc coating | According to the request |
Application | Automobile industry, Heat exchanger, Hydraulic system, Auto parts, etc |
Packing | Bundles, seaworthy wooden cases, with or without edge protector, steel hoop and seal, or as per customers' special requirements |
Delivery | Delivery: 20-50 days according to the quantity after T/T or L/C issued |
Testing | NDT and Visual examination |
Certificates | ISO9001:2000, ISO/TS16949 |
