Model:1.5 ton
Send Inquiry

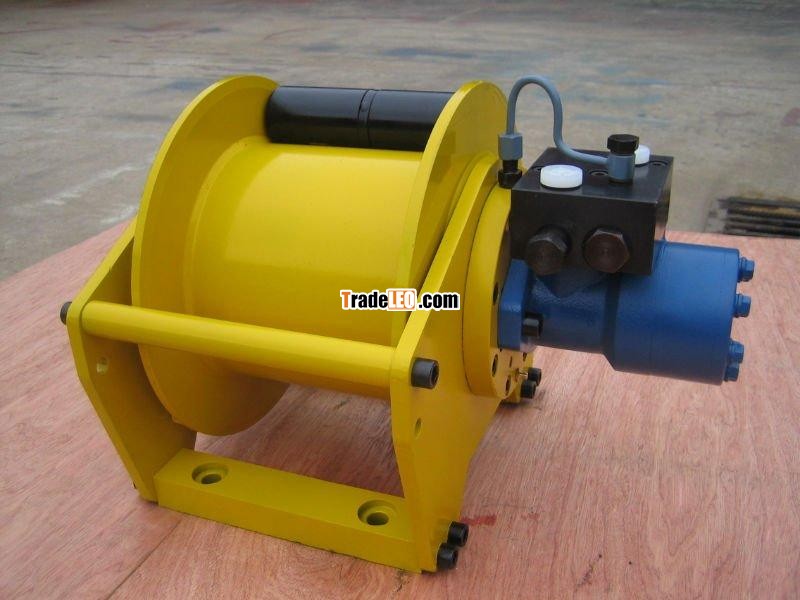

hydraulic winch 1.5 ton:
W series hydraulic winches consist of orbit hydraulic motor, planetary gear reducer and the brake, etc.
Using threaded connection steel structure frame, configuration spindle valve, balancing valve and other security control system.
Have a compact structure and take up a little space.
Apply to such kind of lifting and traction equipments as ship, wharf and cars, etc.
Main specification of W 15 series hydraulic winch
Rope layer | n | 1 | 2 | 3 | 4 |
Line pull | Kgf | 1500 | 1370 | 1260 | 1170 |
Rope speed with 45 L/min | m/min | 30 | 34 | 37 | 41 |
Rope capacity grooved drum | m | 12 | 26 | 40 | 55 |
