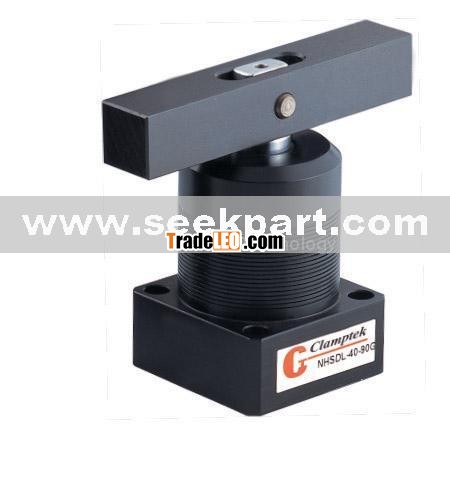

ASC  Air Swing Clamp Cylinder

The material of cylinder body is aluminum alloy,surface processed with hardening and inside of it is smoonth,so the service life of the product is long.

Bore of cylinder (mm):             Φ25;         Φ32;         Φ40;              Φ50;            Φ63

Bore of piston(mm)   :              Φ14;         Φ16;        Φ16;               Φ20;            Φ20

Swing stroke (mm)     :             9;              11;         11;                  13;              13

Clamping stroke(mm)std/incr:    13;         15/30;     15/30;             17/34;          17/34

Pressure area pull/push cm2  3.37/4.91    6.03/8.04  10.56/12.57    16.49/19.63   28.03/31.17

Theoretical clamping  kg/cm2  20kg        36kg          63kg              99kg            168kg

Fluid: Filtered air

Max operation pressure: 10kg/cm2

Rang of pressure(kg/cm2):1--7kg/cm2

Rotating direction:turn right or turn left

Rotating angle : Standard angle 90 degree(±2 degree), optional angle: 0 degree, 45 degree;60 degree

Acting type:double acting
