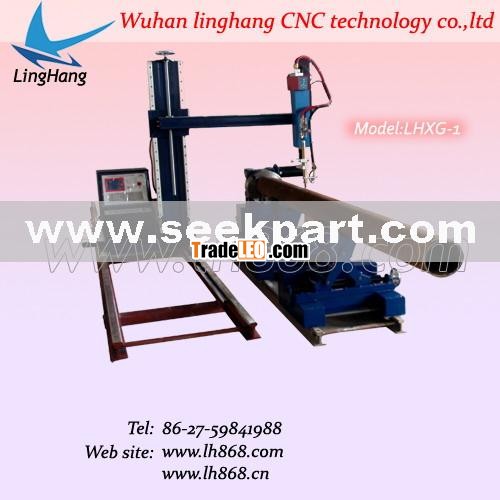

| | Steel pipe cutting machine: To meet users´demand to cut special shapes on pipes&plate,we develop CNC Intersection cutting machine. whose biggest characteristic is suitable for mass Intersection cutting;high efficiency,stable sunning,high precision. Functions
1.can cut intersection circles of different directions & diameters on main pipe,achieve eccentric& non-eccentric intersection and perpendicular intersection between branch pipe & main pipe.
2.can cut intersection end at pipe end,achieve eccentric& non-eccentric intersection, and oblique perpendicular intersection between branch pipe & main pipe
3.can cut oblique section on pipe end
4.can cut weld ell on round pipe, oblique sections of the "mitre elbow"
5.can cut intersection end on branch pipe intersected with Ring Main pipe
6.can cut bevel of changing angle
7.can cut square hole&waisted-shape hole on round pipe
8.can cut off pipes
Basic configuration:
Mechanical unit
1.host rail length according to rail length of intersection part(can be lengthened)
2.rail length of intersection part 3000mm(3m/joint,can be lengthened)
3.torch 1 set
4.automatic ignition device 1 set
5.gas circuit device 1 set
6.longitudinal drive mode Rack and pinion
7.pipeline drive mode transversal tow
8.cutting gas Oxygen,Acetylene,(Oxygen,Propane)
9.plasma source can choose suitable plasma source CNC control unit
10.CNC system WUHAN LANSUN III
11.Drive system/motor Chinese/imported Main technical parameters
cutting range
1,maximum diameter 1000mm
2,minimum diameter 50mm
cutting parameter
3,flame cutting thickness6-300mm
4,plasma cutting thickness depends on plasma source
machine features
5,torch elevation height 150mm
6,cutting speed 0-3500mm/min
7,set speed error less than +/-5%
