Model:SWM01

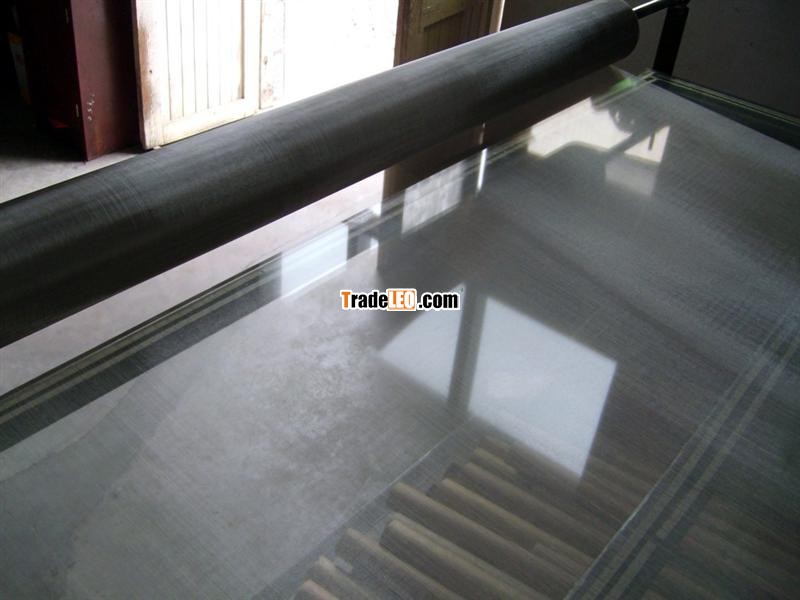

stainless steel wire mesh
stainless steel woven wire mesh,stainless steel woven wire cloth, plain weave stainless steel wire mesh
material: 304,304L,316,316L,other
Stainless steel wire mesh is made of stainless steel wire type of 304, 316,304l, 316l.
Weaving method: Plain weaving & Dutch weaving.
Specification of Stainless Steel Wire Mesh
Mesh/Inch | SWG(Wire Gauge) | Aperture (mm) |
3mesh | 14 | 6.27 |
4mesh | 16 | 4.27 |
5mesh | 18 | 3.86 |
6mesh | 18 | 3.04 |
8mesh | 20 | 2.26 |
10mesh | 20 | 1.63 |
20mesh | 30 | 0.95 |
30mesh | 34 | 0.61 |
40mesh | 36 | 0.44 |
50mesh | 38 | 0.36 |
60mesh | 40 | 0.30 |
80mesh | 42 | 0.21 |
100mesh | 44 | 0.172 |
120mesh | 44 | 0.13 |
150mesh | 46 | 0.108 |
160mesh | 46 | 0.097 |
180mesh | 47 | 0.09 |
200mesh | 47 | 0.077 |
250mesh | 48 | 0.061 |
280mesh | 49 | 0.060 |
300mesh | 49 | 0.054 |
350mesh | 49 | 0.042 |
400mesh | 50 | 0.0385 |
Note: width of stainless steel wire mesh is normally 0.6m to 1.5m.
Super Thin Wire Mesh
Square Hole | Mesh (inch) | 100x100 | 120x120 | 130x130 | 135X135 | 145X145 | 160x160 | 180x180 | 220x220 | 230x230 |
Wire Dia.(mm) | 0.058 | 0.06 | 0.045 | 0.06 | 0.05 | 0.03 | 0.03 | 0.035 | 0.03 | |
Rectangular hole | Mesh (inch) | 90X 50 | 100x50 | 120x76 | 170x85 | 200x100 | 230x115 | 250x125 | ||
Wire Dia. (mm) | 0.08 | 0.05 | 0.06 | 0.045 | 0.05 | 0.04 | 0.04 |
