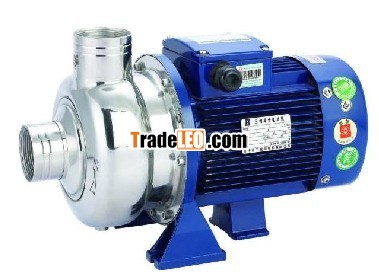

Type BB stainless steel pumps
2016-10-30 22:53  Views:66
Price:Negotiable
Model:Type BB
Send Inquiry

Applications
This pump can be used at full head without overloading motor.
The pumps are suitable for transporting clean water and light corrosive liquid, glycol solution and other liquid which must be allowed by dealer. The pumps can be applied on Industrial applications, domestic, washing, pool, and irrigation etc.
Liquid temperature: -15℃~+80℃
Max. working pressure: 8bar



Materials
Casing,impeller,back cover and pump shaft: SUS304 material.

Motor Data
Speed: 2900 r/min
Insulation Class: F or B
Protection Class: IP 55
Rating Power: 0.55~3kW  0.75~4Hp
Frequency: 50Hz
Voltage：220V   380V
Overload protection: Prepared by sustomer
Motor jacket/base/adapter: Aluminium
Ambient temperature range: -15℃~+40℃

Performance Date
