Brand:SFC
Model:XLB-Q1200×2500×1

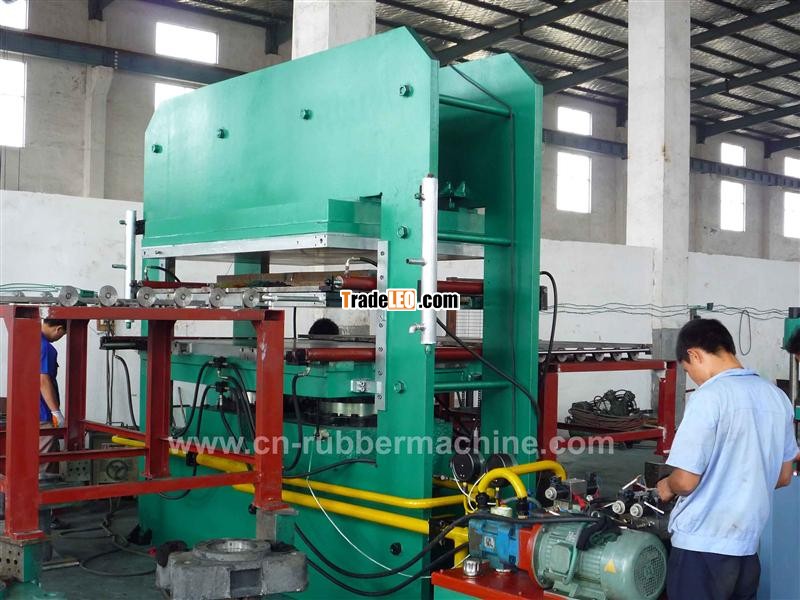

Rubber Products Vulcanizing Press
1. Rubber Products Vulcanizing Press is used in suppress kinds of rubber products, thermosetting plastic products and can also be used as common hydraulic press.
2. The Rubber Products Vulcanizing Press has simple structure, flexible operation, capacious space and beautiful appearance etc.
3. This Rubber Products Vulcanizing Press mainly consists of host machine, hydraulic system, and electronic control system. Fuel tank alone installed on the on the left of host machine, not affected by the temperature of host machine plate.。Workers have convenient operation and capacious visual. Plate temperature is controlled by temperature control table, high precision and good quality of products. The machine parts are all according to ministry of chemical industry standard, using quality materials, with meticulously processed.
silsuwang(at)sfcjx(dot)com
www(dot)cn-rubbermachine(dot)com
Technical Parameter:
Item | XLB240×240×2 | XLB350×350×2 | XLB400×400×2 | XLB500×500×2 | XLB600×600×2/4 | XLB700×700×2 | XLB750×850×2/4 |
Total pressure (MN) | 0.15 | 0.25 | 0.5 | 0.63 | 1.00 | 1.20 | 1.60 |
Daylight (mm) | 125 | 125 | 125 | 125 | 125 | 125 | 200 |
Platen Layers | 2 | 2 | 2 | 2 | 2-4 | 2 | 2-4 |
Unit area pressure of hot plate(Mpa) | 2.60 | 2.04 | 3.13 | 2.52 | 2.77 | 2.45 | 2.51 |
Piston stroke (mm) | 250 | 250 | 250 | 250 | 250/400 | 250 | 400 |
Heating mode | Electricity | Electricity | Electricity/ | Electricity/ | Electricity/ | Stream | Electricity/ |
Main motor power (KW) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 3 |
Size: L × W × H (mm) | 1200×350 | 1400×480 | 1600×500 | 1750×600 | 1880×720 | 2000×850 | 2250×1200 |
frame form | Post | Post | Post | Post | Post | Post | frame |
Item | XLB-Q900×900×2 | XLB-DQ1200×1200×2 | XLB-DQ1300×2000×1 | XLB-Q1200×2500×1 | XLB-Q1500×2000×1 | XLB-Q2000×3000×1 | XLB-Q1400×5700×1 |
Total pressure (MN) | 2.00 | 3.15 | 5.60 | 7.50 | 10.00 | 18.00 | 28.00 |
Daylight (mm) | 300 | 200 | 400 | 400 | 400 | 400 | 400 |
Platen Layers | 2 | 2 | 1 | 1 | 1 | 1 | 1 |
Unit area pressure of hot plate(Mpa) | 2.47 | 2.19 | 2.15 | 2.5 | 3.33 | 3 | 3.51 |
Piston stroke (mm) | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
Heating mode | Stream | 22 | 21.5 | 25 | 33.5 | 30 | 35 |
Main motor power (KW) | 5.5 | 3 | 8 | 9.5 | 11 | 26 | 43.5 |
Size: L × W × H (mm) | 1400×900 | 1685×1320×2450 | 2000×1860×2500 | 2560×1700×2780 | 2810×1550×3325 | 2900×3200×2860 | 2400×5800×3600 |
frame form | frame | frame | frame | frame | frame | frame | frame |
