Straw Chopper Knife with Stable Rotation
2016-10-30 23:37  Views:145
Price:Negotiable
Send Inquiry

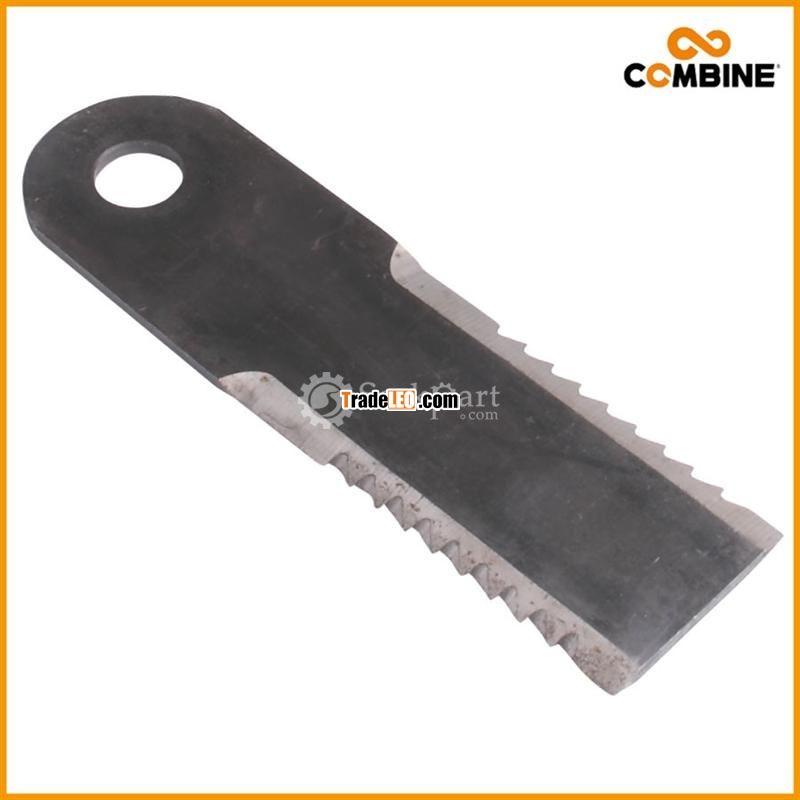

Combine straw choper knife:
1). Stable Ratation
2). Good heat treatment
3). Safe use
4). excellent apperance

1. The weight tolerance between different knives must be ± 6g, to keep the  Stable Ratation.

2. How to keep good quality:

 1) cut the raw material according to the pattern of steel, and the knife length direction must be along the pattern such as below, or it will be easily brocken;

 2) Heat treatment: Firstly, increase the hardness by integral quenching, then tempering to 25-30 HRC, finally add the cutting edge hardness to 50-55HRC by high-frequency quenching.

3) Chambering in the hole or add a bushing in the hole. That's because the hold is tapered after the punching, it will abrade the hold the matched parts.
