Model:krm 160s

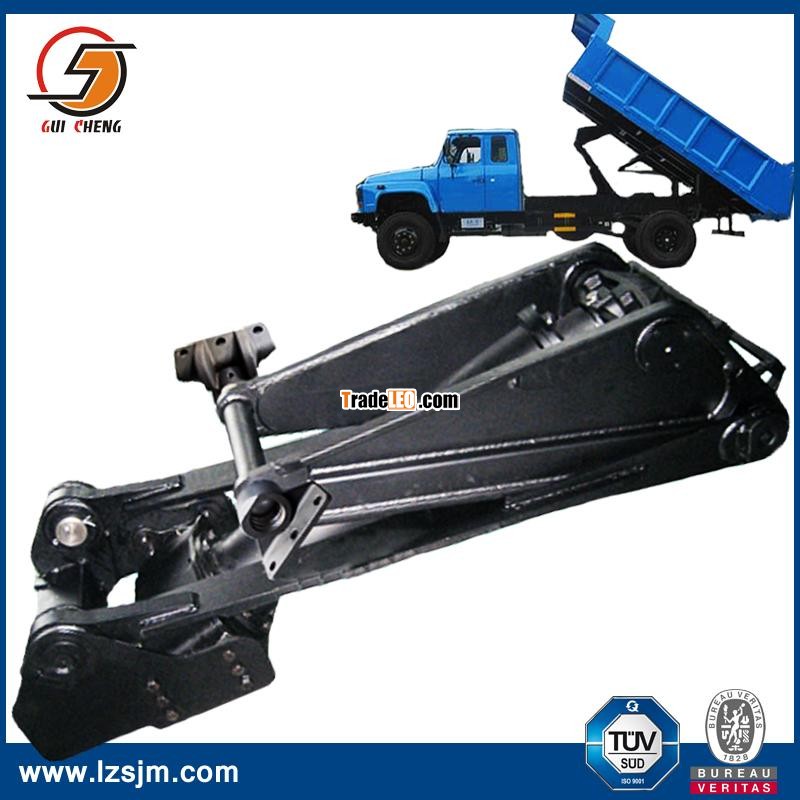

mian data of Complete hoist system krm hydraulic cylinder for dump trucks
Hoist Mechanism, Dimensions and Weight (approx.)
Length(mm) | Width(mm) | Height(mm) | Min.closing length(mm) | Weight(kg) |
1434 | 500 | 360 | 992 | 252 |
Hoist Cylinder and Pump Combination Specification (approx.)
Hoist Cylinder KRM160C | Working Pressure(MPa) (Kgf/cm2) | 6.9 |
Gear Pump KP-75A/B
| Standard Revolution (rpm) | 800 |
70 | |||||
Inner Diameter (mm) | 160 | Discharge Volume(ml/rev.) | 72 | ||
Stroke (mm) | 604 | Max. Testing Pressure(MPa) (Kgf/cm2) |
| ||
Min. mounting distance (mm) | 914 | 20.6 | |||
210 | |||||
Piston Rod diameter (mm) | 70 |
Weight(kg) |
22 | ||
Max. pressure (MPa) (Kgf/cm2) | 15.7 | ||||
160 |
Hoist Mounting and Maximum Lifting Capacity
Recommended Truck G.W.(kg) | Body Length(mm) | Rear Overhang Length(mm) | Distance between Load Center and Hinge(mm) | Distance between trunnion and Hinge(mm) | Rated Lifting Capacity(kg) | Designed Max. lifting Capacity(kg) (including load weight) |
8000-11000 | 3800 | 600 | 1300 | 1400 | 6000-8000 | 11000/52° |
Reference data for different models of our KRM serial Hydraulic Cylinder:
(We can also produce custom made Hydraulic Cylinder according to your specific requirments)
| Model | Cylinder Inner Hole Diameter(mm) | Piston Rod Diameter(mm) | Stroke(mm) | Lifting Capacity(Ton) |
| KRM92 | 152 | 60 | 545 | 2-3 |
| KRM-143A | 140 | 60 | 530 | 4-5 |
| KRM-160S | 160 | 70 | 640 | 6-8 |
| KRM-160C | 160 | 70 | 794 | 6-8 |
| KRM-183B | 180 | 85 | 962 | 15-17 |
| KRM-201 | 200 | 100 | 948 | 16-18 |
| KRM-220(48") | 220 | 100 | 1123 | 18-25 |
| KRM-220(68") | 220 | 100 | 1620 | 20-29 |
