The mine hoists is used to lifting materials and personnels in various mines.

The mine hoists are characterized by strong lifting capablity and low power consumption.

The spindle and the wheel hub are forged entirely. Friction pad is with high performace and the wear resistance is good.

Double system hydraulic station is used.

JK series single rope winding mine hoist

        Single rope winding hoist is mainly used for vertical shaft and inclined shaft for lifting and lowing materials, person and equipments, can also be used for delivery underground and lifting of the sinking bucket.

        For this type, we can manufacture various types of single and multi drum, diameter from: 2-5 meters, the maximum static tension difference 60-280KN, the maximum lifting speed 5.2-12.6m/s.

Specifications

1.hydraulic station
2.lubrication station

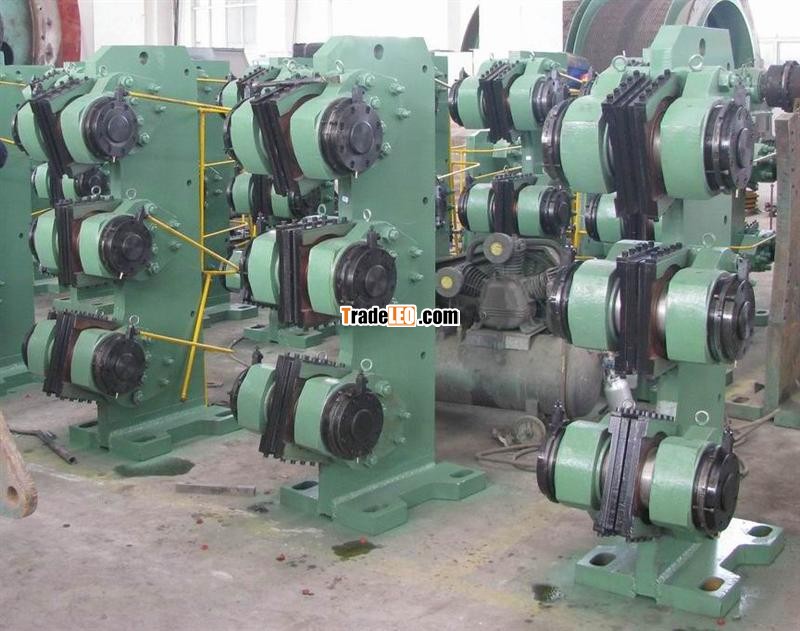

3.disc brake
4.head sheave
5.PLC control system
