Auto C purlin roll forming machine
2016-10-31 01:34  Views:178
Price:Negotiable
Brand:TIANYUAN
Model:GY160
Send Inquiry

Equipment Structure

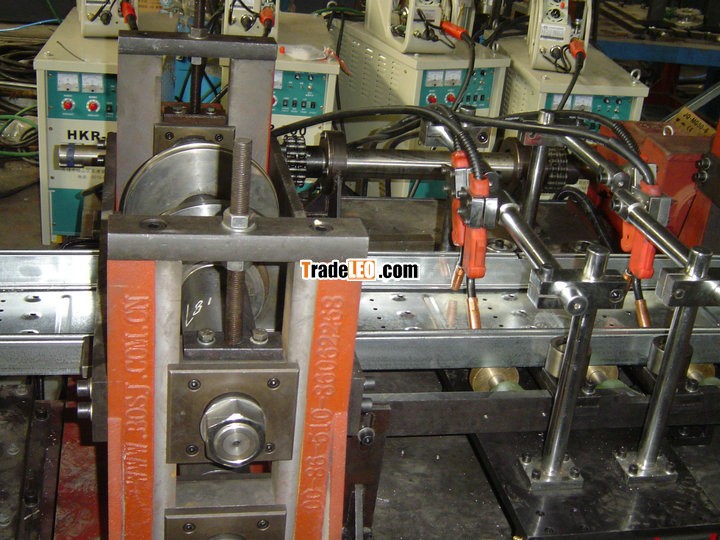

Auto C purlin roll forming machine

This production line consists of leveler,feeding/punching, roll forming, cutting,etc.

The production line is composed of de-coiler, leveler,punching, roll forming , cutting system , electric control system , etc.



Technical parameter



NO.

Item

Unit

Parameter

Remark



1



Material



Type





galvanized sheet,mild steel,etc,



Strength of material sheet

Map

≥350



Thickness of material sheet

mm

1.2~2.0

customizable

2

Profile sizes

mm

        See Figure

customizable

3

Production speed

m/min

6~8

customizable

4

Material of roller



GCr15 quenching treatment



5

Drive type



Gearbox driven



6

Motor Power

kw

about 48



7

Electric control system



PLC variable frequency control



8

Dimensions(Length*width*height)

m

35X4X3.9
