Product Features:

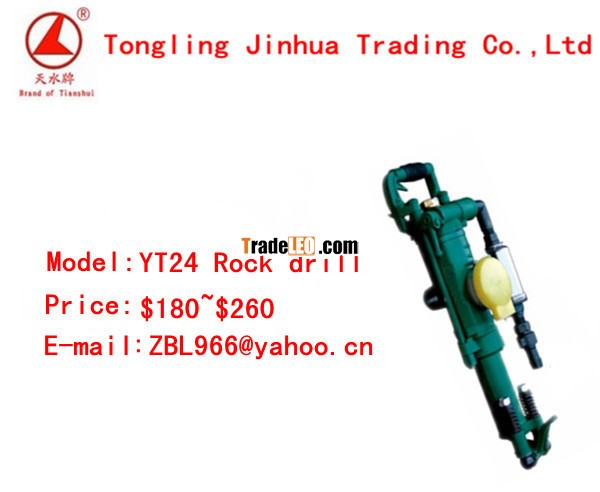

YT24 Hand hold air compressor jack drill equipment
1. Energy-saving and efficient;
2. easy cleaning air /water holes;
3. spare parts easily purchasing;
4. parts highly interchangeable and reliable performance.
Specifications:
Air-leg jack drill | |||
Model | YT24 | ||
Weight(kg) | 24 | ||
Length(mm) | 678 | ||
Cylinder Dia.(mm) | 70 | ||
Piston Stroke(mm) | 70 | ||
Impact Frequency(Hz) | ≥31 | ||
Air consumption(L/s) | ≤67 | ||
Bore Dia.(mm) | Φ34-42 | ||
Drilling depth(m) | 5 | ||
Shank(mm) | 22×108 | ||
Air pressure(MPa) | 0.63 | ||
Suitable air-legs | FT140B | FT140BD | |
Eeight(kg) | 15.6 | 13.9 | |
Length(mm) | 1687 | 1400 | |
Feed length (mm) | 1250 | 965 | |
