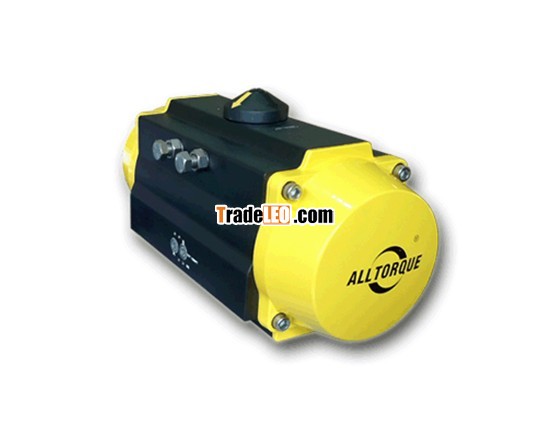

Pneumatic atuator
1. Pinion and rack structure(2 pistons)
2. Size: DFS032 to DFS400(inside diameter)
3. Working pressure: 3 to 8 bar
4. Switch angles: 0 to 90° ; , ± 5 ° Adjustable
5. Acting: Double acting; Spring return(single acting)
6. Double coatings:
Anodize hardening coating(more than 25μ M ), then epoxy-polyester coating(more than 200μ M)
7. Certification: ATEX(TUV), CE
8. Suitable temperature:
Standard: -20~+80 centigrade
Low temperature: -40~+80 centigrade
High temperature: -15~+150 centigrade
9. Output torque:
Double acting: 3.2~13397 NM
Single acting: 3~9358 NM
10. Warranty: 1 million times or 3 years (stop warranty after the earlier one time arriving) for free of charge
