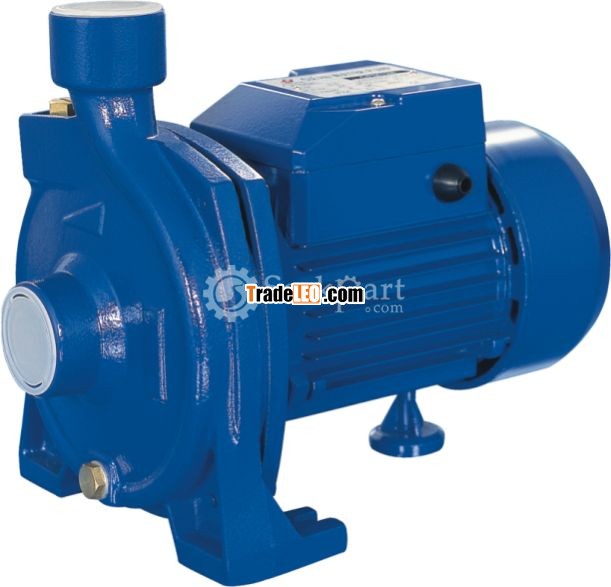

CPM/SCM Centrifugal Water Pump Low Head High Capacity

APPLICATIONS

Single impeller centrifugal pumps suitable to cover any small, medium or large capacity request for domestic, agricultural and industrial purposes; with automatic water distribution through small and medium sized tanks; for sprinkler and flood systems in gardening and agriculture; to increase in derivation system pressure in aqueducts.

OPERATING LIMITS

- Suction lift up 6-8m with foot valve.

- Maximum operating pressure: 8 bar.

- Maximum ambient temperature: +40℃.

- Liquid temperature up to +90℃.

- Maximum altitude +1000m.

DESIGN FEATURES

- Pump body: cast iron.

- Impeller: Brass or PPO or" General Electric".

- Motor shaft: AISI1045.

- Mechanical seal: NBR/Graphite/Ceramic.

SPECIAL FEATURES ON REQUEST

- Stainless steel welding shft.

- AISI420/AISI304/AISI316 stainless steel shaft.

- FPM/EPDM/SIC/WC mechanical seal.

- Other voltage and frequency.

- Internal thermal protector.

- Three phase power.

PRODUCTION STANDARD

- IEC 60034-1    - IEC 335-1

- IEC 34-1            - ISO 2548

MOTOR

- Single phase power supply with capacitor permanently activated.

- Insulation class: B

- Protection: IP44

- Speed of rotation: 2850rpm.

- Continuous duty: S1.
